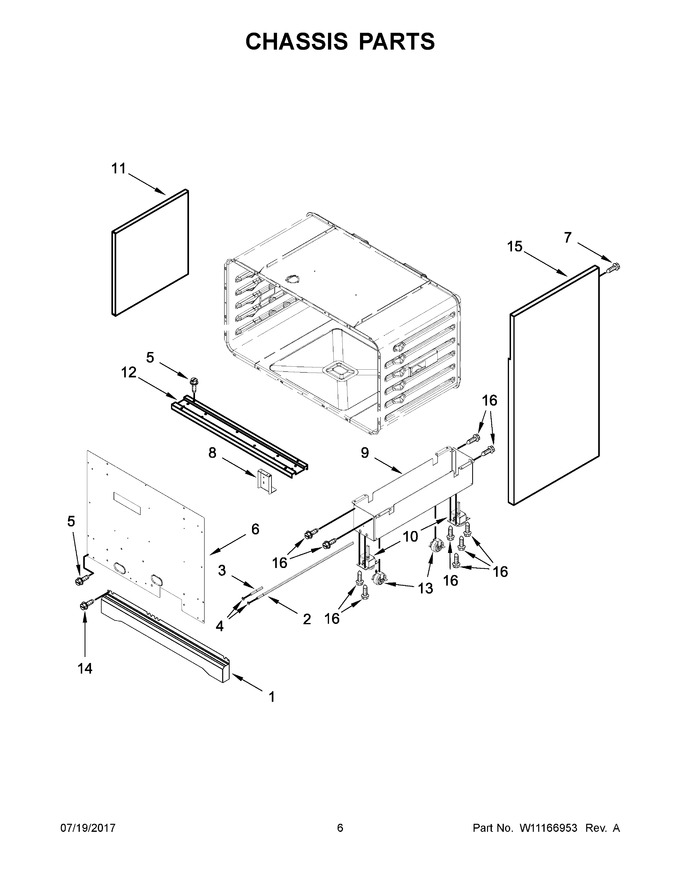

04 - Chassis Parts


05 - Oven Parts


06 - Top Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11028645		Kickplate (imperial Black)		Appelez-nous	-
2	W10115869		Shaft, Long			Immediately	$ 109.36
3	W10115793		Shaft, Short				$ 75.83
4	489504		E-ring				$ 7.40
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
6	W10269196		Duct, Bottom		Appelez-nous	-
7	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
8	W10115850		Bracket, Pressure Regulator		Appelez-nous	-
9	W10249333		Base, Leveling Leg				$ 292.22
10	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
11	W10269206		Chassis, Side (left)				$ 235.28
12	W10269193		Support, Channel		Appelez-nous	-
13	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
14	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
15	WPW10250465		Panel, Side (left)   (Replaces: W10250465)				$ 448.67
16	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
11A	W10269205		Chassis, Side (right)				$ 235.53
14A	WP3196557		Screw (white, Blue, And Red Models)   (Replaces: 3196537)			Immediately	$ 7.95
15A	W11333303		Panel, Side (right)   (Replaces: W10250464)				$ 421.41
1A	W11028644		Kickplate (imperial White)		Appelez-nous	-
1B	W11127307		Kickplate (cobalt Blue)   (Replaces: W11028638)		Appelez-nous	-
1C	W11028631		Kickplate (signature Red)		Appelez-nous	-
