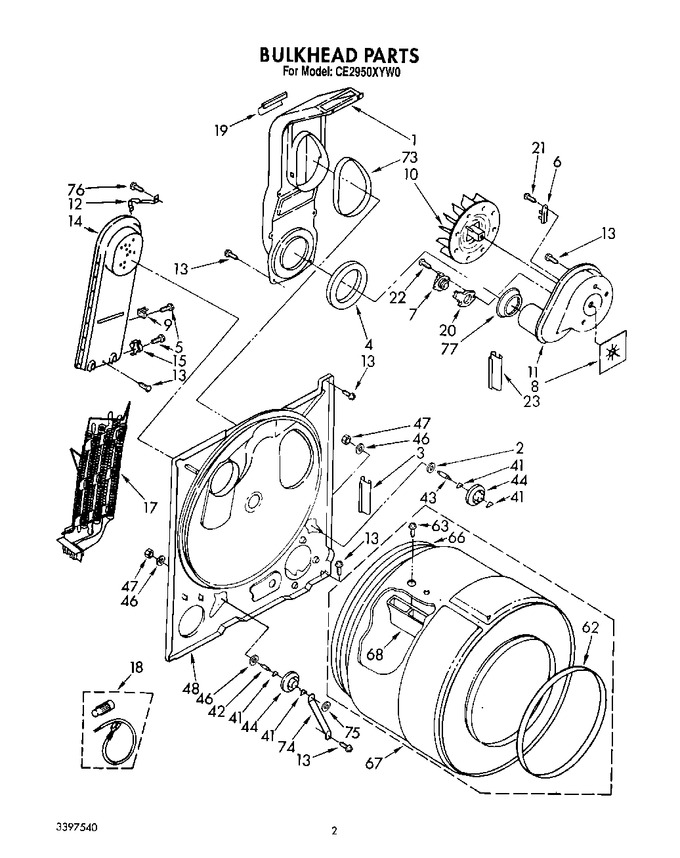

02 - Bulkhead


03 - Top And Console


04 - Cabinet


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute, Assembly   (Replaces: 694283)				$ 317.74
2	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.85
3	686889		Pad, Cabinet		Appelez-nous	-
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 19.14
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
6	WP3392519		Fuse, Thermal   (Replaces: 3392519)			Immediately	$ 24.95
7	AT022		Thermostat, Operating 150~f (65.6~c)   (Replaces: 660039)			Immediately	$ 35.17
7	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 50.51
8	3392123		Seal, Blower		Appelez-nous	-
9	279769		Cut-off, Thermal   (Replaces: 3389946)			Immediately	$ 62.85
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 37.66
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 15.05
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
14	695547		Box, Heater		Appelez-nous	-
15	WP3390291		Thermostat, High Limit 250~f (121.1~c) (60 Hz.)   (Replaces: 3390291)			Immediately	$ 94.94
17	WP279462		Heater Element   (Replaces: 693301)				$ 304.87
18	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
19	686770		Protector Support		Appelez-nous	-
20	61894		Heater, Thermostat				$ 37.38
21	WP965173		Screw, 8-18 X 3/8   (Replaces: 695239)			Immediately	$ 11.87
22	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 8.28
23	686889		Pad, Blower Housing   (Replaces: 3392247)		Appelez-nous	-
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 47.30
44	349241T		Roller, Support (2)   (Replaces: 3389901)			Immediately	$ 29.53
46	WP348197		Washer, Support (4)   (Replaces: 348197)				$ 7.55
47	WP3359452		Nut, 3/8-16 (2)   (Replaces: 3359452)			Immediately	$ 7.55
48	3387227		Bulkhead		Appelez-nous	-
62	WP3394508		Bearing, Ring   (Replaces: 3394508)				$ 131.86
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	239087		Seal, Rear Drum   (Replaces: 337449)			Immediately	$ 62.78
67	3396775		Drum Assembly   (Replaces: 3387226)				$ 353.03
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 154.33
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 9.06
74	348945		Bracket, Support Shaft		Appelez-nous	-
75	WP90296		Clip   (Replaces: 90296)				$ 8.24
76	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
77	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 23.40
	LIT3395308		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	LIT3397540		List, Service Parts		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT692257		Sheet, Top Lock Instruction		Appelez-nous	-
	LIT348772		Instructions, Multi-venting		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	261891		Golden Harvest (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
