SELECT A DIAGRAM

01 - Cover Sheet

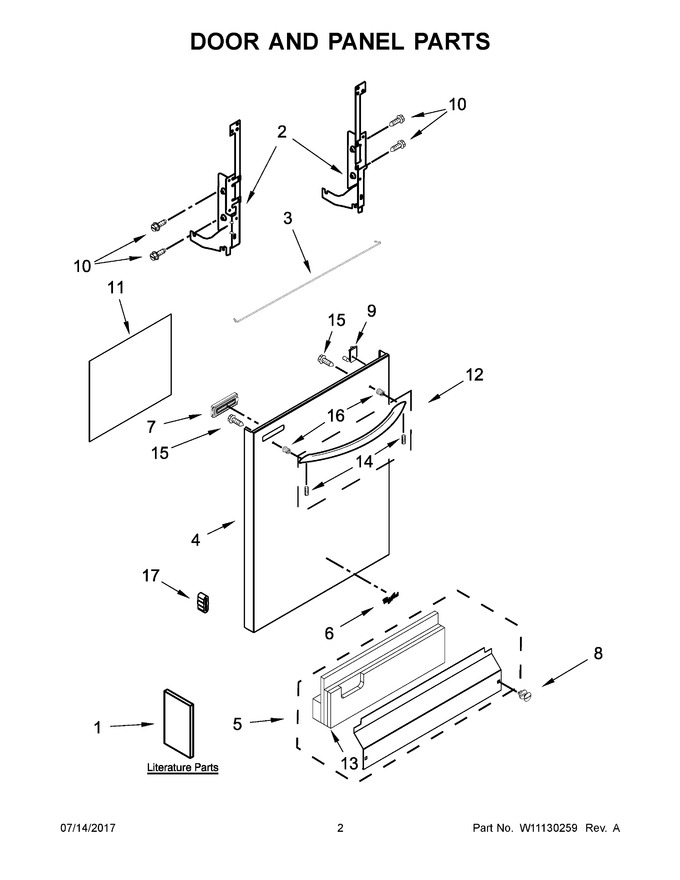

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806908		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11116418		Panel, Front (includes 6, 7, 9, 15 & 16) (black)   (Replaces: W11049244)			Immediately	$ 397.60
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
6	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
7	W11105961		Vent (black)		Appelez-nous	-
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	W11036316		Light, Pipe				$ 72.12
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
12	W10907189		Handle Assembly (black)   (Replaces: W11024062)				$ 100.62
13	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
14	W10907991		Screw, Set   (Replaces: W10693137)				$ 7.55
15	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
16	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
17	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
12A	W11757259		Handle Assembly (white)   (Replaces: W11024063)				$ 93.22
12B	W11685315		Handle Assembly (stainless)   (Replaces: W11090074)			Immediately	$ 102.81
1A	W11046216		Energy Guide		Appelez-nous	-
1B	W11049299		Use & Care Guide		Appelez-nous	-
1C	W10904612		Tech Sheet		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93
4A	W11116419		Panel, Front (includes 6, 7, 9, 15 & 16) (white)   (Replaces: W11049245)				$ 415.87
4B	W11116420		Panel, Front (includes 6, 7, 9, 15 & 16) (stainless)   (Replaces: W11049227)				$ 422.27
5A	WPW10526115		Access Panel (white)   (Replaces: W10526115)				$ 175.17
7A	W11105960		Vent (white)		Appelez-nous	-
7B	W11105958		Vent (silver)		Appelez-nous	-
8A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77

    View Diagram in Separate Window       Print Part List
