SELECT A DIAGRAM

01 - Cover Sheet

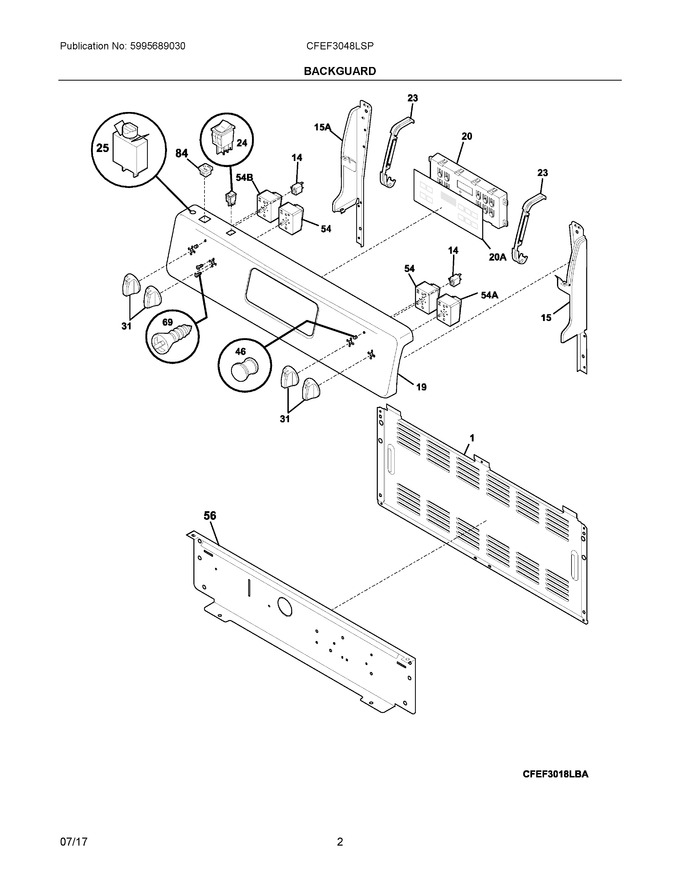

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 64.04
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316456534		Panel, Backguard, Stainless				$ 185.75
20	5304509493		Clock, Es300			Immediately	$ 235.97
23	316441600		Bracket-clock Mtg, Black				$ 22.75
24	5304527841		Switch, Rocker, Black   (Replaces: 5304512726)			Immediately	$ 12.64
25	316508401		Switch, Circuit Break				$ 129.15
31	316543801		Knob, Control, Black			Immediately	$ 61.53
46	316437900		Lens, Indicator Light				$ 11.45
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	316370101		Shield, Backguard, Black				$ 34.60
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
84	5304512810		Outlet, Electrical, Miniature, Black				$ 73.40
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419141		Overlay, Clock, Black, Es300			Immediately	$ 63.19
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 57.42
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 98.89
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96

    View Diagram in Separate Window       Print Part List
