SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

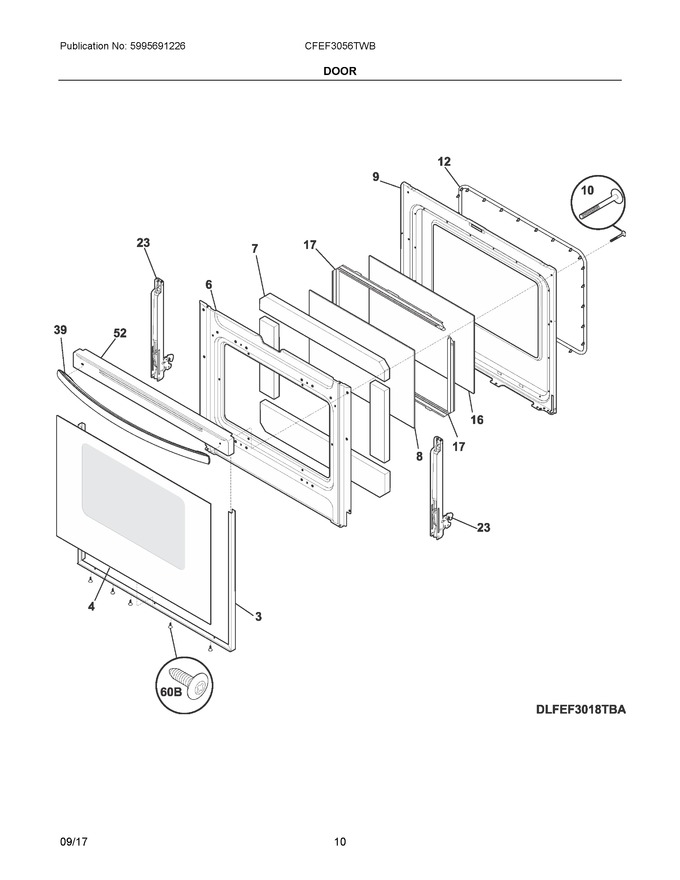

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935318		Trim Kit-door, 3 Sided, White, W/tape   (Replaces: 5303935393)			Immediately	$ 92.93
4	316559108		Glass Assembly, Outer, White			Immediately	$ 240.84
6	316406328		Shield-wool   (Replaces: 316406312)				$ 96.90
7	316405600		Insulation, Oven Door				$ 85.05
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 163.47
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 30.55
12	316405000		Seal, Oven Door			Immediately	$ 199.08
16	5304503232		Glass, Oven Door, Inner   (Replaces: 316117503)				$ 129.94
17	5304504811		Spacer, Glass			Immediately	$ 27.80
23	316575909		Hinge, Oven Door, Black			Immediately	$ 109.55
39	5304522047		Handle, Door, White   (Replaces: 5304507385)			Immediately	$ 136.25
52	316575500		Cap, Door Trim, White			Immediately	$ 135.66
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.95
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
