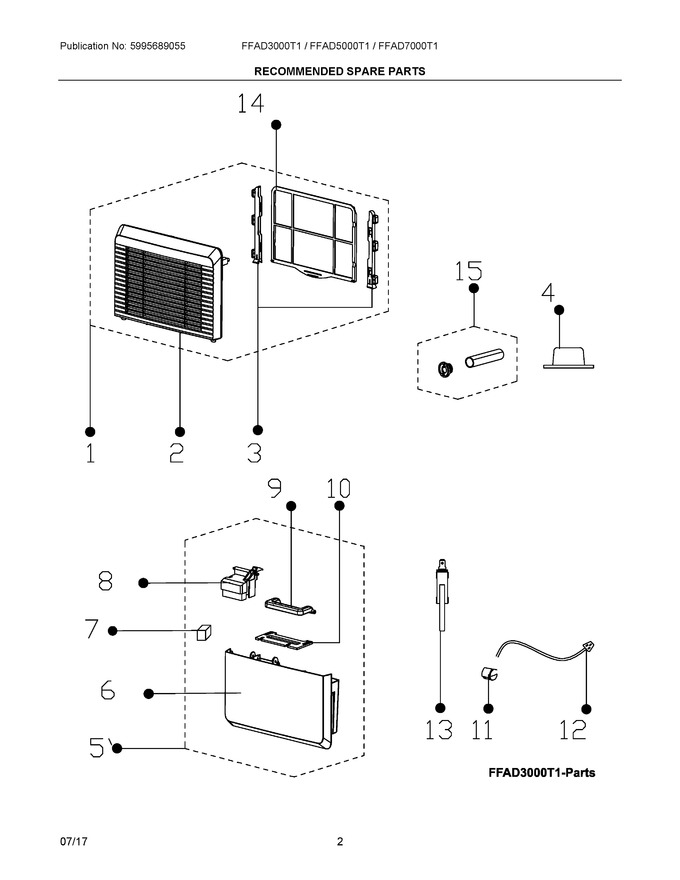

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304512492 | Front Assembly, Grille, W/filter |
|
- | |||||
| 2 | 5304512493 | Front, Grille |
|
- | |||||
| 3 | 5304512478 | Track, Filter, (2) |
|
- | |||||
| 4 | 5304512479 | Stopper, Drain |
|
- | |||||
| 5 | 5304512494 | Water Tank, Assembly, W/handle-float |
|
- | |||||
| 6 | 5304512495 | Tank, Water |
|
- | |||||
| 7 | 5304512482 | Pad, Foam, Floater |
|
- | |||||
| 8 | 5304512496 | Floater, Bucket |
|
- | |||||
| 9 | 5304512484 | Handle, Bucket |
|
- | |||||
| 10 | 5304512497 | Cover, Water Tank |
|
- | |||||
| 11 | 5304512486 | Caster, (4) |
|
$ 20.24 | |||||
| 12 | 5304512498 | Power Cord, Assembly |
|
- | |||||
| 13 | 5304512488 | Switch, Inching |
|
- | |||||
| 14 | 5304512499 | Filter, Air |
|
- | |||||
| 15 | 5304512490 | Drain Kit |
|
- |
