01 - Cover Sheet

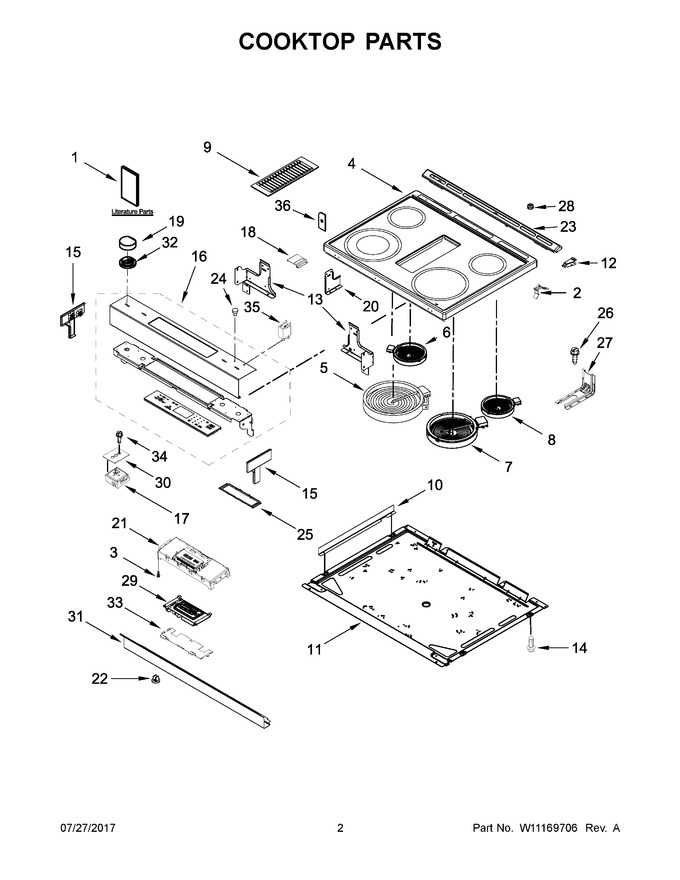

02 - Cooktop Parts
03 - Chassis Parts
04 - Blower Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787365 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10818722 | Cooktop (black) (Replaces: W10536330) |
|
$ 913.91 | |||||
| 5 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 6 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 168.46 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 341.96 | ||||
| 8 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 9 | W11211500 | Grill, Air (Replaces: W10575593) |
|
Immediately | $ 248.38 | ||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 77.91 | |||||
| 11 | W10561812 | Pan, Radiant |
|
- | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10557750 | Endcap (black (left)) |
|
$ 142.98 | |||||
| 16 | W10919259 | Console (black) (Replaces: W10901074) |
|
$ 751.22 | |||||
| 17 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 239.88 | ||||
| 18 | W10752321 | Shield, Keypad |
|
- | |||||
| 19 | W10505762 | Knob (black) |
|
$ 144.17 | |||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 21 | W11295990 | Control, Mrc2 (Replaces: W10759274) |
|
Immediately | $ 514.49 | ||||
| 22 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 23 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10557780 | Bracket , Control |
|
$ 36.68 | |||||
| 26 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 29 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 589.61 | |||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 10.57 | ||||
| 31 | W10743280 | Console, Lower Panel (black) |
|
- | |||||
| 32 | W10663811 | Bezel (black) |
|
- | |||||
| 33 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 34 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 35 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 101.96 | ||||
| 36 | W10882900 | Gasket |
|
$ 23.34 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 15A | W10557753 | Endcap (black (right)) |
|
- | |||||
| 17A | W10917724 | Switch, Infinite (left Rear And Right Front) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 17B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 115.27 | ||||
| 1A | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1B | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1C | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1D | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1E | W11643128 | Template, Downdraft (Replaces: W10817089) |
|
$ 14.41 | |||||
| NI | W11171878 | Harness, Cooktop (Replaces: W10580253) |
|
Immediately | $ 207.95 | ||||
| NI | W10664316 | Clip, Harness |
|
$ 20.97 | |||||
| NI | W10813885 | Harness, Main |
|
$ 277.56 | |||||
| NI | W11198274 | Harness, Jumper (Replaces: W10812964) |
|
$ 117.73 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 119.99 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 75.29 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 236.93 | ||||
| NI | W10580264 | Harness, Console |
|
$ 257.81 |
