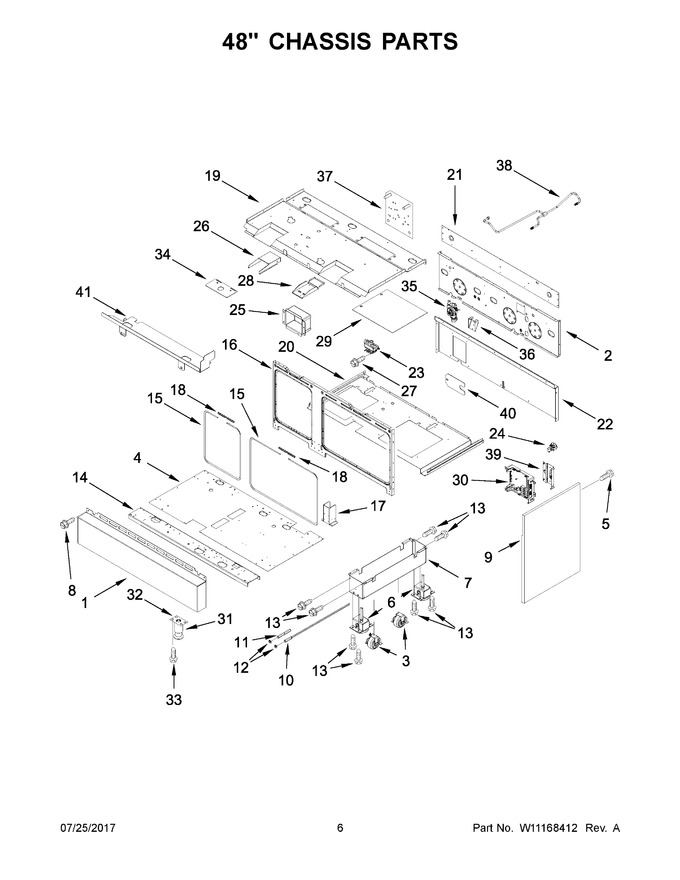

04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10454313		Kickplate   (Replaces: W10454313)				$ 390.93
2	W10145354		Back, Chassis		Appelez-nous	-
3	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
4	W10774046		Duct, Bottom (48")		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10249333		Base, Leveling Leg				$ 292.22
8	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
9	W11321067		Panel, Side (left)   (Replaces: W10250467)				$ 439.37
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
14	W10145375		Support, Channel		Appelez-nous	-
15	W11675844		Gasket, Oven (30")   (Replaces: W10850858)			Immediately	$ 74.56
16	W10160895		Frame, Front		Appelez-nous	-
17	W10115819		Column, Central		Appelez-nous	-
18	W11368870		Retainer, Gasket (30")   (Replaces: W10157511)				$ 24.91
19	W10145372		Chassis, Top		Appelez-nous	-
20	W10145369		Chassis, Bottom		Appelez-nous	-
21	W10321816		Panel, Back Top		Appelez-nous	-
22	W10145390		Panel, Back Bottom		Appelez-nous	-
23	W11239228		Valve, Dual   (Replaces: W10145680)			Immediately	$ 336.96
24	W10311268		Valve, Single			Immediately	$ 369.61
25	W10308051		Box, Broil		Appelez-nous	-
26	W10235557		Assembly, Drawer		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	W10853036		Support, Control		Appelez-nous	-
29	W10239444		Seal, Control		Appelez-nous	-
30	W10888661		Manager, Appliance   (Replaces: W10859106)			Immediately	$ 516.62
31	WP9759117		Foot, Dual Fuel   (Replaces: 9759117)				$ 148.66
32	WP9759118		Plate, Mounting   (Replaces: 9759118)				$ 154.94
33	3400518		Screw				$ 13.63
34	W10115855		Holder, Strain Relief		Appelez-nous	-
35	W10813917		Regulator, Pressure				$ 296.11
36	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
37	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 239.59
38	W10145704		Tube, Valve Dual				$ 221.17
39	W10145362		Bracket-board, Dsi				$ 81.33
40	W10145381		Cover, Channel		Appelez-nous	-
41	W10856770		Diverter, Air   (Replaces: W10774048)				$ 107.66
15A	W10775946		Gasket, Oven (18")				$ 142.72
18A	W10216520		Retainer, Gasket (18")		Appelez-nous	-
9A	W10250466		Panel, Side (right)				$ 513.24
