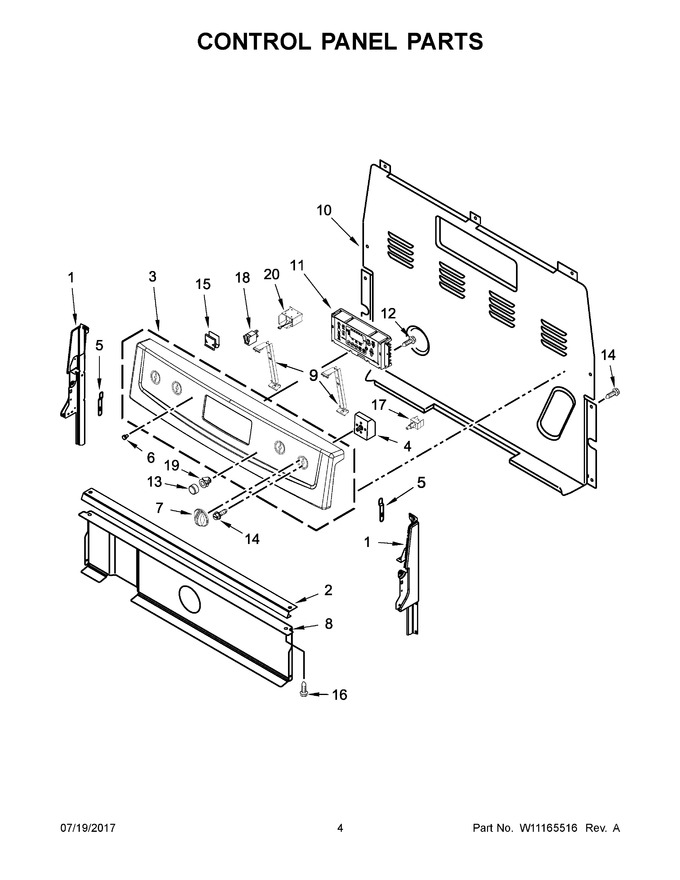

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 3 | W10710240 | Panel, Control (white) |
|
- | |||||
| 4 | WP3149400 | Switch, Infinite (left Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10853029 | Knob, Infinite (white) (Replaces: W10676214) |
|
Immediately | $ 38.27 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11122546 | Control, Range (lcc 95) (white) (Replaces: W10887919) |
|
$ 502.99 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 13 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 15 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 16 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 17 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 178.91 | |||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 20 | W11093562 | Transformer (Replaces: W10693109) |
|
- | |||||
| 11A | W11122543 | Control, Range (lcc 95) (stainless) (Replaces: W10887917) |
|
$ 502.99 | |||||
| 13A | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 20.21 | |||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1B | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1C | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 3A | W10720439 | Panel, Control (stainless) |
|
- | |||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4B | WPW10434452 | Switch, Infinite (dual) (right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 7A | W10836470 | Knob, Infinite (black) (Replaces: W10676213) |
|
Immediately | $ 38.09 |
