Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11097245 Tech Sheet (english) Appelez-nous -
2 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

3 W10840312 Block, Pivot Special Order $ 26.05

4 W11820443 Pad, Sound   (Replaces: W10838044) Special Order $ 103.71

5 W11450890 Control, Electronic   (Replaces: W11093037) Special Order $ 324.18

6 W10415341 Gasket, Hv Box Special Order $ 37.00

7 W11820446 Assembly, Roller (left Hand)   (Replaces: W11084045) In-Stock Immediately $ 96.12

8 W10846099 Brake, Roller Special Order $ 22.31

9 WP98165 Screw   (Replaces: 12990521) Special Order $ 8.57

10 W11032616 Hinge, Top (left Hand) Special Order $ 76.44

11 W11573362 Screw (stainless)   (Replaces: W10673840) Special Order $ 14.72

12 W11225850 Cover, Top Hinge Left Hand (includes Foil) (black)   (Replaces: W10868791) Special Order $ 167.45

13 W10208592 Cover, Valve Appelez-nous -
14 W11126052 Screw   (Replaces: W10731474) In-Stock Immediately $ 14.73

15 W10691674 Hinge, Center Left Hand (black) Special Order $ 90.18

16 W11686675 Screw   (Replaces: 12990702) Special Order $ 14.27

17 67003485 Cover, Corner (black)   (Replaces: 12587703B) In-Stock Immediately $ 22.14

18 W11312191 Valve, Water   (Replaces: W11095287) In-Stock Immediately $ 188.31

19 W10912979 Switch, Reed Appelez-nous -
20 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

21 W10878918 Divider, Air (rear) Special Order $ 52.08

22 W10887785 Grille, Toe (black)   (Replaces: W10821308) Special Order $ 128.51

23 W11214483 Screw   (Replaces: 12992601) In-Stock Immediately $ 14.72

24 W10835554 Assembly, Outer Air Tunnel (includes Gasket) (black) Appelez-nous -
25 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

26 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

27 W10858498 Assembly, Jumper Wire Appelez-nous -
28 W10754144 Cover, Control Box Special Order $ 86.16

29 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

30 W10669259 Cover, Unit Appelez-nous -
31 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

32 W10853597 Tube, Icemaker Water (includes Seal) Special Order $ 129.66

33 W10768379 Lid, Hv Special Order $ 83.60

34 W10705239 Retainer, Door In-Stock Immediately $ 51.64

35 N/P Cabinet (not A Servicable Part) Appelez-nous -
36 549193 Clamp, Power Cord Special Order $ 14.06

37 W10835557 Assembly, Inner Air Tunnel (includes Gasket) (black) Appelez-nous -
38 W11223833 Bushing   (Replaces: W10831587) In-Stock Immediately $ 15.83

39 W11111702 Wifi Module   (Replaces: W10916847) Special Order $ 200.97

40 W10868954 Assembly, Hinge Pin (includes Set Screw) Appelez-nous -
41 W10900407 Closer, Upper Cam Door (black) Appelez-nous -
42 WP33001882 Screw   (Replaces: 12990701) Special Order $ 83.71

10A W11047670 Hinge, Top (right Hand) Appelez-nous -
12A W11371720 Cover, Top Hinge Left Hand (includes Foil) (grey)   (Replaces: W10921527) Special Order $ 186.29

12B W10884683 Cover, Top Hinge Right Hand (black) Appelez-nous -
12C W10884682 Cover, Top Hinge Right Hand (grey) Appelez-nous -
15A W10816322 Hinge, Center Left Hand (grey) Special Order $ 81.84

15B W10868798 Hinge, Center Right Hand (black) Appelez-nous -
15C W10874430 Hinge, Center Right Hand (grey) Appelez-nous -
17A W10868482 Cover, Corner (grey) Appelez-nous -
1A W11097246 Tech Sheet (french) Appelez-nous -
1B W10913495 Tech Sheet, Use And Care Guide Appelez-nous -
1C W11112695 Tech Sheet, Energy Guide Appelez-nous -
21A W10878920 Divider, Air (bottom) Special Order $ 49.83

22A W10887787 Grille, Toe (grey)   (Replaces: W10821309) Special Order $ 128.03

24A W10838744 Assembly, Outer Air Tunnel (includes Gasket) (grey) Appelez-nous -
32A W10853599 Tube, Dispenser Water (includes Seal) Special Order $ 128.11

37A W10838745 Assembly, Inner Air Tunnel (includes Gasket) (grey) Appelez-nous -
41A W10904285 Closer, Upper Cam Door (grey) Appelez-nous -
7A W11763410 Assembly, Roller (right Hand)   (Replaces: W11084046) Special Order $ 38.66


    View Diagram in Separate Window     Print Icon   Print Part List

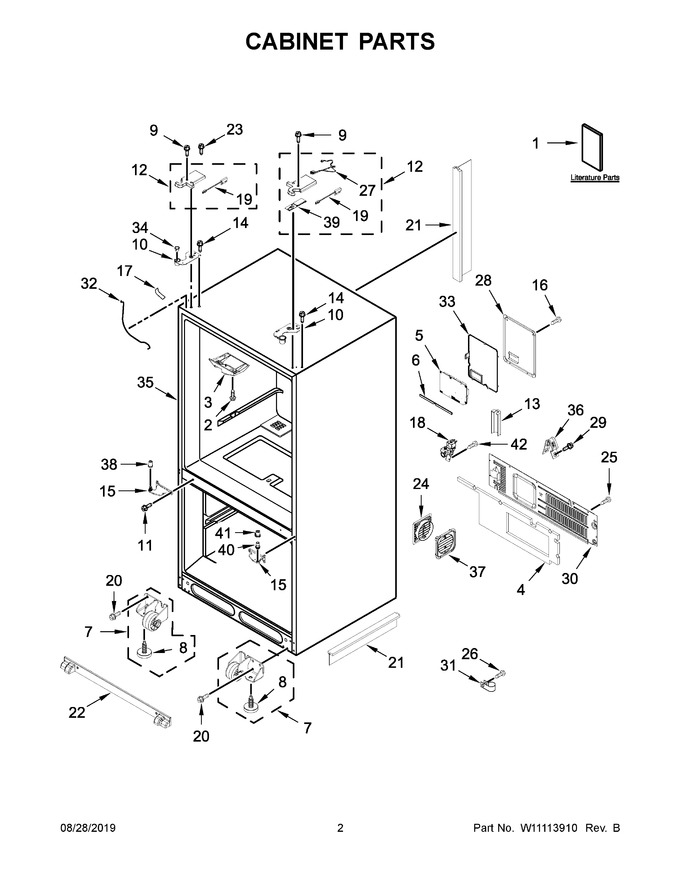

Diagram for KRFC804GSS00
