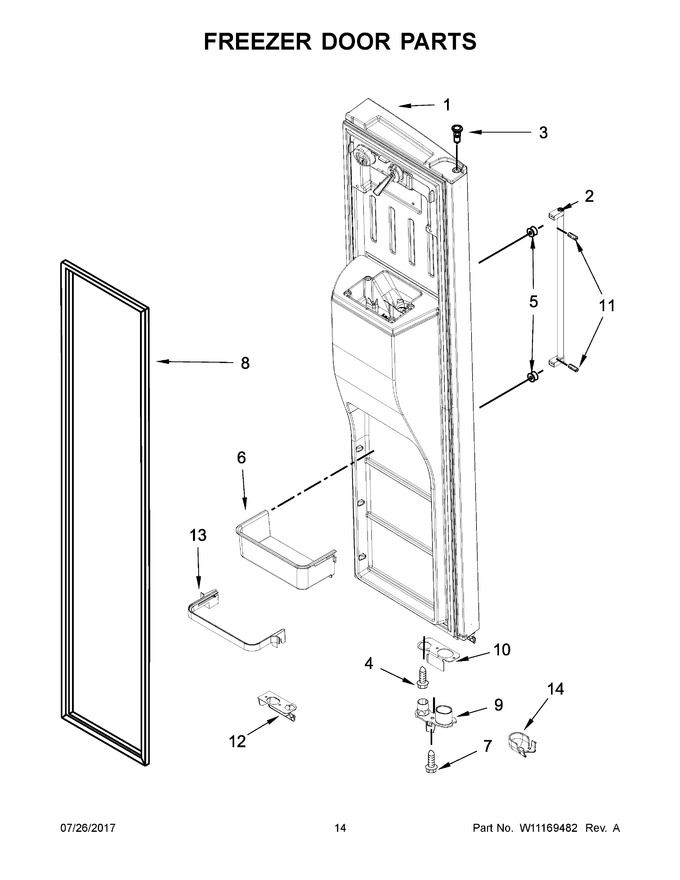

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10864696 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black Stainless) (Replaces: W10864696) |
|
$ 1,550.14 | |||||
| 2 | W11340150 | Handle (stainless) (Replaces: W10740429) |
|
$ 200.19 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10434529 | Bin, Door (Replaces: W10434529) |
|
$ 77.78 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | W10249915 | Gasket, Door (black) |
|
- | |||||
| 9 | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 7.55 | ||||
| 12 | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 13 | WPW10494336 | Frame, Door Bin (Replaces: W10494336) |
|
$ 243.61 | |||||
| 14 | W10323148 | Cover, Wire |
|
$ 42.25 |
