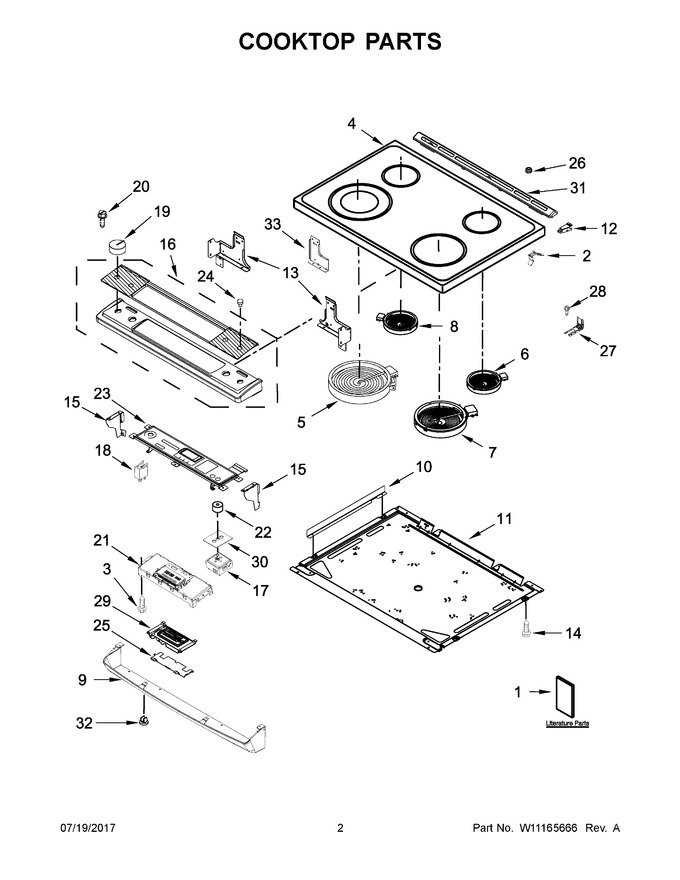

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10733001 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10751483 | Cooktop (black) (Replaces: W10611852) |
|
$ 575.37 | |||||
| 5 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 8 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 223.48 | |||||
| 9 | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 162.27 | ||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W10660994 | Console (stainless) |
|
$ 388.87 | |||||
| 17 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 19 | W11116868 | Knob (stainless) (Replaces: W10596748) |
|
Immediately | $ 75.60 | ||||
| 20 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10613393 | Control Mrc2 (Replaces: W10613393) |
|
$ 298.43 | |||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| 23 | W10612579 | Active Overlay Assembly |
|
$ 378.16 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 28 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 29 | W11105615 | Assembly, Display (Replaces: W10759325) |
|
Immediately | $ 374.42 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 10.57 | ||||
| 31 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 32 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 33 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 17A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 17B | W11162115 | Switch, Infinite (right Front) (Replaces: W10600015) |
|
Immediately | $ 110.10 | ||||
| 17C | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 1A | W10665272 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10688295 | Wiring Diagram (english/french) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580240 | Harness, Main |
|
$ 202.23 | |||||
| NI | W10580241 | Harness, Cooktop |
|
$ 167.77 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 236.93 | ||||
| NI | W10580262 | Harness, Console |
|
$ 188.83 | |||||
| NI | W10664316 | Clip, Harness |
|
$ 20.97 |
