SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

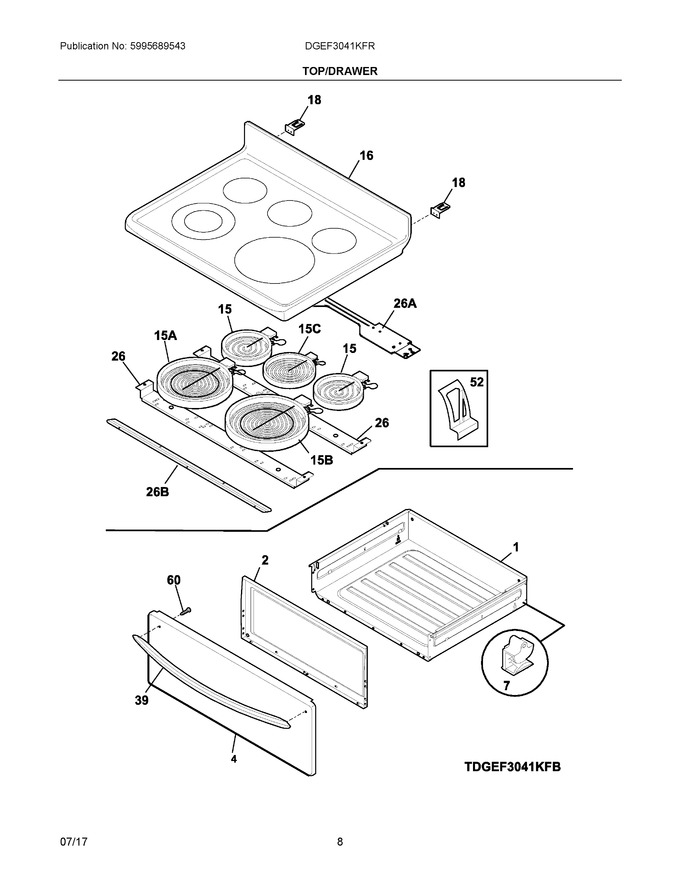

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 122.90
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 32.03
4	5304511907		Panel, Drawer Front   (Replaces: 316409443)				$ 78.70
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 10.95
8	5304490938		Glide, Drawer, Front			Immediately	$ 16.01
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	316531973		Maintop, Steel/glass, Black				$ 598.57
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	5304500986		Channel, Element Support, (2)				$ 46.31
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 187.16
52	316461700		Clip, Element Mtg				$ 13.39
60	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 34.63
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 100.15
15B	316291200		Element, Radiant, 12", Top, 2700w   (Replaces: 5304510566)			Immediately	$ 261.45
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)				$ 39.74
26A	316498200		Bracket-support, Chassis, Aluminum				$ 58.14
26B	316214202		Bracket, Chassis Support, Front				$ 25.41
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316580475		Harness, Wiring, Surface Units				$ 132.35
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.53
