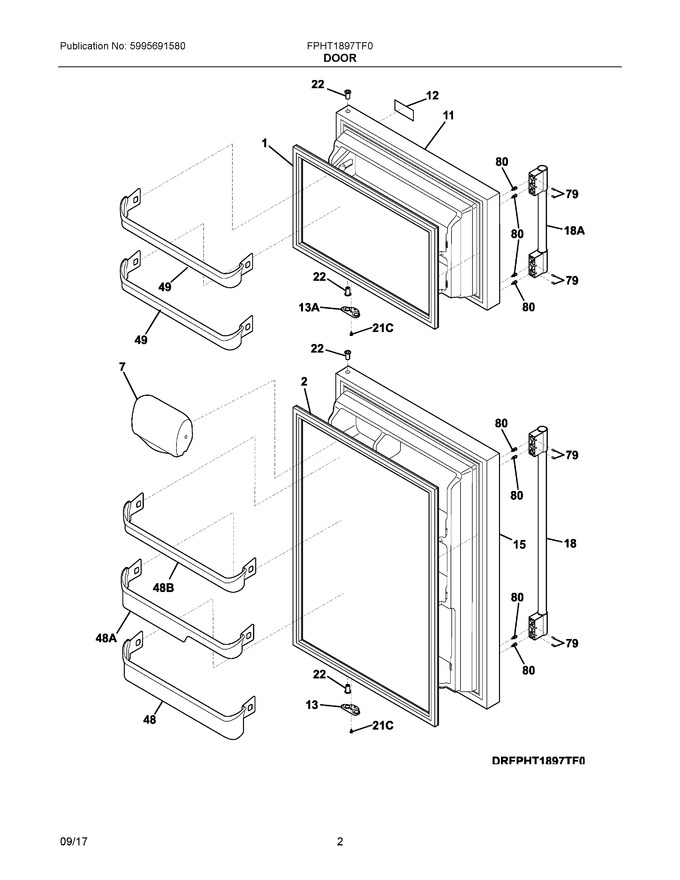

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193218 | Gasket-frzr Door, Gray, Magnetic |
|
$ 209.00 | |||||
| 2 | 242193219 | Gasket-refr Door, Gray, Magnetic |
|
Immediately | $ 209.00 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 11 | 240410209 | Door |
|
$ 385.35 | |||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 49.10 | ||||
| 13 | 240312424 | Door Stop, Gray, Ref |
|
$ 16.01 | |||||
| 15 | 240410312 | Door |
|
$ 525.43 | |||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 124.18 | ||||
| 22 | 5304507147 | Bearing-hinge, Black, (8) |
|
Immediately | $ 8.43 | ||||
| 48 | 240338101 | Bin-door |
|
Immediately | $ 58.19 | ||||
| 49 | 240495805 | Bin-door, Pseudo, Frzr |
|
$ 56.60 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 240312419 | Door Stop, Gray, Frzr |
|
$ 18.11 | |||||
| 18A | 5304513031 | Handle |
|
- | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door |
|
Immediately | $ 38.84 | ||||
| NIA | 241601001 | Wrench, Allen |
|
- |
