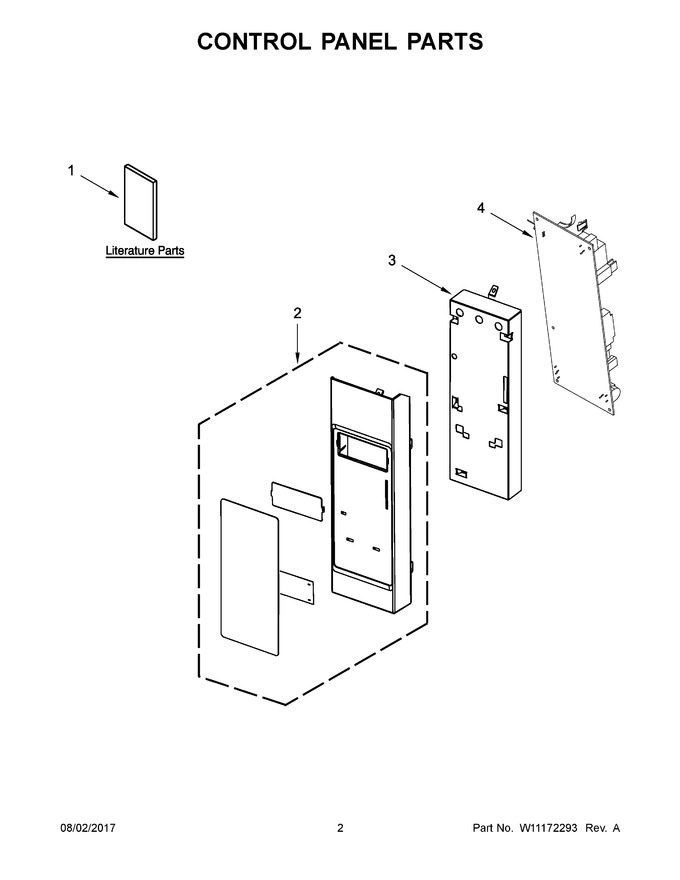

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10724870 | Installation Instructions |
|
- | |||||
| 2 | W10917119 | Assembly, Control Panel (white) |
|
- | |||||
| 3 | W10771573 | Backer, Control Panel |
|
$ 78.23 | |||||
| 4 | W11127852 | Microcomputer (Replaces: W10846315) |
|
- | |||||
| 1A | W10841423 | Use And Care Guide |
|
- | |||||
| 1B | W10792842 | Quick Reference Guide |
|
- | |||||
| 1C | W10844814 | Tech Sheet |
|
- | |||||
| 2A | W10917118 | Assembly, Control Panel (black) |
|
- | |||||
| 2B | W10848071 | Assembly, Control Panel (stainless) |
|
- |
