01 - Cover Sheet

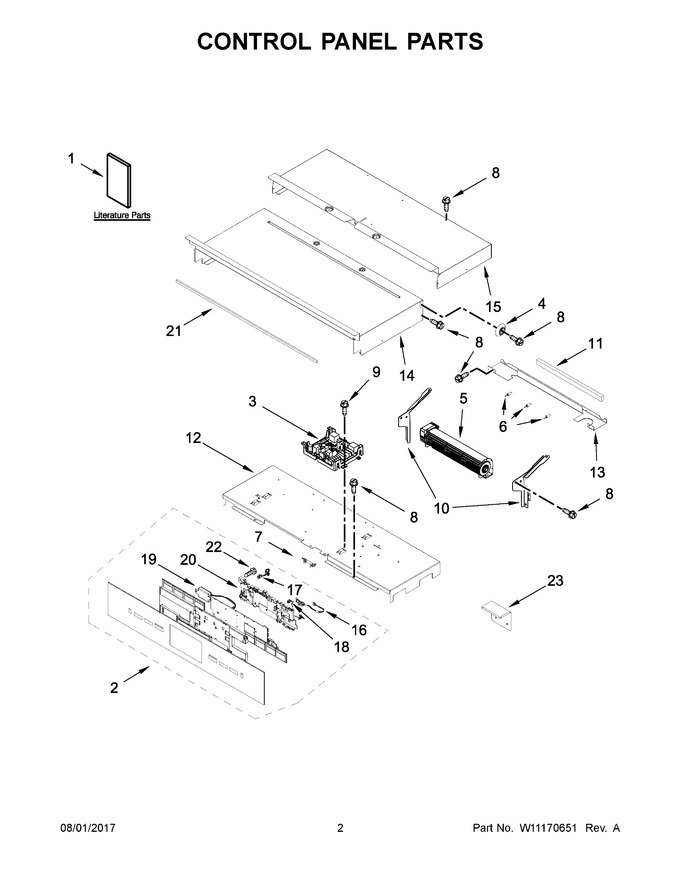

02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754337		Guide, Use & Care		Appelez-nous	-
2	W11236890		Assembly, Control Panel (black)   (Replaces: W10875268)				$ 1,703.03
3	W10821712		Manager, Appliance   (Replaces: W10635086)			Immediately	$ 512.59
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	W10351295		Bumper				$ 22.12
7	W11610133		Fuse, Thermal   (Replaces: W10782120)			Immediately	$ 30.82
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10864102		Tray, Electronic				$ 67.13
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10667383)		Appelez-nous	-
16	W10575307		Jumper Harness, Power Supply			Immediately	$ 173.84
17	W10566973		Harness, Keypad (left To Center)				$ 82.19
18	W10524350		Harness, Keypad (right To Center)				$ 78.21
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	W10668510		Housing				$ 105.17
21	W10728475		Gasket, Rubber				$ 38.13
22	W10489172		Screw				$ 11.98
23	W10810292		Shield, Wifi Access		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10790014		Instructions, Installation		Appelez-nous	-
1B	W10767737		Sheet, Tech		Appelez-nous	-
1C	W10787928		Guide, Wifi Connectivity		Appelez-nous	-
NI	WPW10339879		Tie, Cable   (Replaces: 4454842)				$ 8.30
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 118.98
NI	W11132990		Harness, Signal   (Replaces: W10522152)				$ 114.73
NI	W11132997		Harness, Main   (Replaces: W10571362)				$ 381.27
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10766153		Assembly, Antenna & Housing				$ 187.33
NI	4450800		Screw, Grounding				$ 13.47
NI	W10679413		Jumper Tod		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	4452400		Strap, Lead Ground				$ 45.42
NI	4448664		Clamp, Conduit				$ 21.41
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
