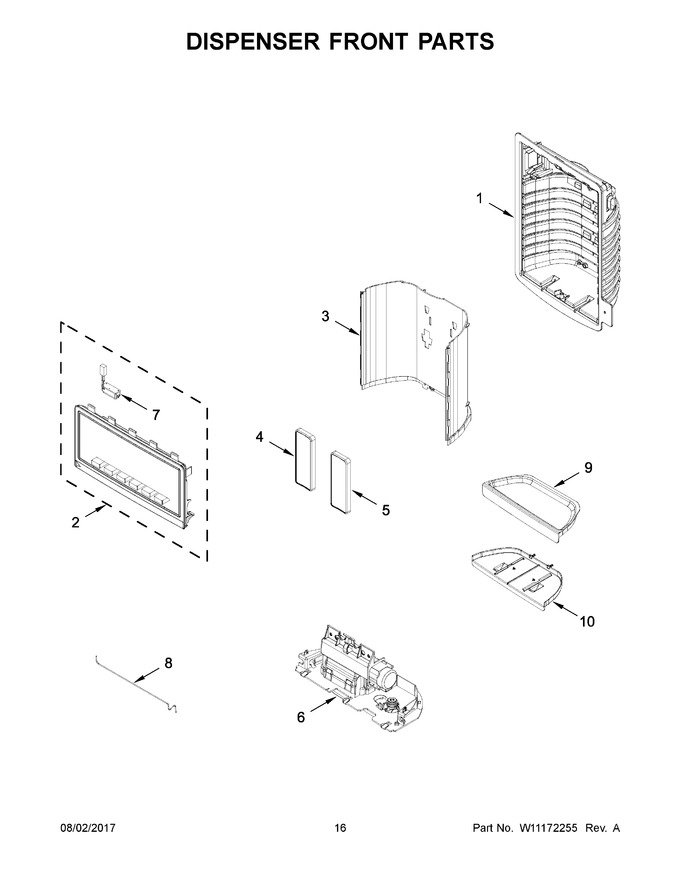

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11269232		Assembly, User Interface   (Replaces: W11106025)				$ 441.26
3	W11045975		Wall, Dispenser False (white)		Appelez-nous	-
4	W10368729		Pad, Ice (black)   (Replaces: W10334798)				$ 277.90
5	W10368729		Pad, Water (black)   (Replaces: W10334822)				$ 277.90
6	WPW10353552		Assembly, Separator   (Replaces: W10353552)				$ 185.29
7	W11290115		Assembly, Led   (Replaces: W10238083)				$ 76.01
8	WPW10511930		Waterline, Door   (Replaces: W10511930)				$ 109.75
9	W11045970		Tray, Dispenser (white)				$ 59.34
10	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
10A	W10267861		Tray, Dispenser Slide (black)				$ 66.95
3A	W11045976		Wall, Dispenser False (black)				$ 38.86
4A	WPW10368730		Pad, Ice (grey)   (Replaces: W10334801)			Immediately	$ 287.52
5A	WPW10368730		Pad, Water (grey)   (Replaces: W10334825)			Immediately	$ 287.52
9A	W11045971		Tray, Dispenser (black)				$ 59.31

    View Diagram in Separate Window       Print Part List
