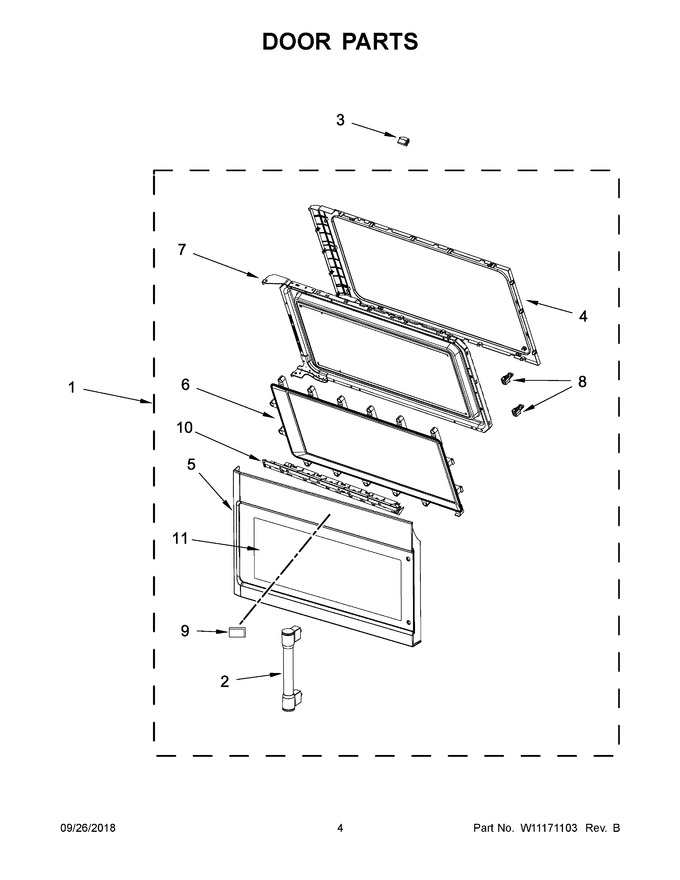

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672722 | Door, Complete (white) |
|
$ 403.74 | |||||
| 2 | W10887538 | Handle (white) |
|
- | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 22.65 | |||||
| 4 | W10648086 | Frame, Inner |
|
$ 100.62 | |||||
| 5 | W11207467 | Assembly, Door Frame (white) (Replaces: W10888477) |
|
$ 231.51 | |||||
| 6 | W10514243 | Plate, Steam Protection |
|
$ 79.07 | |||||
| 7 | W10647793 | Foil, Door |
|
$ 201.62 | |||||
| 8 | W10740455 | Hooks, Door (Replaces: W10489272) |
|
Immediately | $ 56.20 | ||||
| 9 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 10 | W10892376 | Trim, Door (white) |
|
- | |||||
| 11 | WPW10578513 | Assembly, Door Glass (white) (Replaces: W10578513) |
|
$ 149.07 | |||||
| 10A | W10892375 | Trim, Door (black) |
|
- | |||||
| 11A | WPW10544436 | Assembly, Door Glass (black) (Replaces: W10544436) |
|
$ 128.04 | |||||
| 11B | WPW10578515 | Assembly, Door Glass (stainless) (Replaces: W10578515) |
|
$ 144.92 | |||||
| 1A | W10672723 | Door, Complete (black) |
|
$ 396.01 | |||||
| 1B | W10672721 | Door, Complete (stainless) |
|
$ 298.20 | |||||
| 1C | W10672724 | Door, Complete (white Ice) |
|
$ 412.52 | |||||
| 1D | W10672725 | Door, Complete (black Ice) |
|
- | |||||
| 2A | W10887539 | Handle (black) |
|
- | |||||
| 2B | W11034246 | Handle (stainless & Black Ice Models)) (Replaces: W10887533) |
|
$ 160.65 | |||||
| 2C | W11034247 | Handle (white Ice) (Replaces: W10887540) |
|
- | |||||
| 5A | W11207468 | Assembly, Door Frame (black) (Replaces: W10888476) |
|
$ 122.45 | |||||
| 5B | W10888484 | Assembly, Door Frame (stainless) |
|
- |
