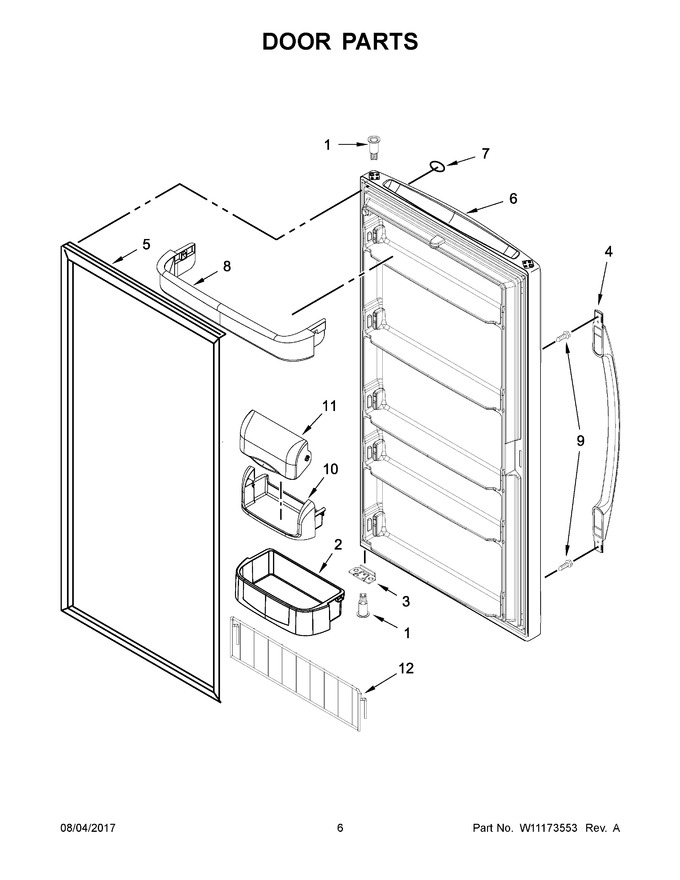

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 2 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 26.32 | |||||
| 4 | W10803532 | Handle, Door (stainless) (Replaces: W10635689) |
|
Immediately | $ 235.46 | ||||
| 5 | W11661568 | Gasket, Door (grey) (Replaces: W10574476) |
|
Immediately | $ 256.81 | ||||
| 6 | W10746794 | Door Assembly (stainless) (Replaces: W10578907) |
|
$ 1,576.84 | |||||
| 7 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 8 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 9 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 10 | WP67001279 | Tray, Dairy (Replaces: 12369502) |
|
Immediately | $ 88.01 | ||||
| 11 | W10612074 | Lid |
|
$ 117.78 | |||||
| 12 | W10574673 | Door, Pizza Shelf |
|
$ 241.14 | |||||
| 2A | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 |
