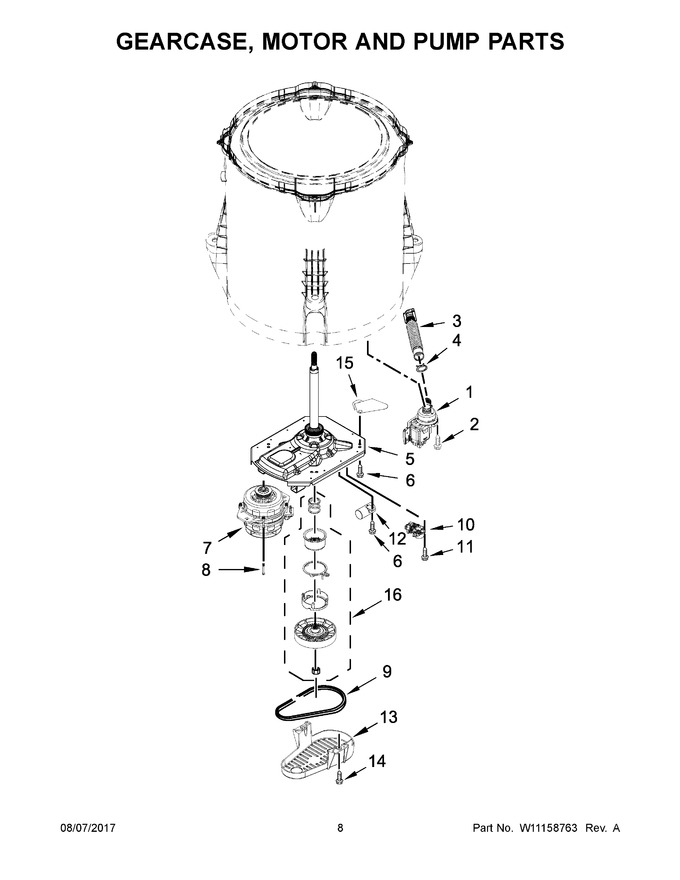

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10876600 | Pump Assembly, Drain (Replaces: W10727777) |
|
Immediately | $ 168.22 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.55 | |||||
| 3 | W10802689 | Hose, Tub To Pump (Replaces: W10763259) |
|
$ 31.18 | |||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 5 | W11454734 | Gearcase Assembly (Replaces: W10870913) |
|
Immediately | $ 326.07 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.80 | ||||
| 7 | W11026785 | Motor, Drive (Replaces: W10677723) |
|
Immediately | $ 309.19 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 13.33 | |||||
| 9 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 34.79 | ||||
| 10 | W10913953 | Actuator-shift (Replaces: W10815026) |
|
Immediately | $ 62.81 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.81 | |||||
| 12 | W11395618 | Capacitor, Motor Run (Replaces: W10866250) |
|
Immediately | $ 109.23 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 44.80 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 15 | W10894129 | Shield, Heat |
|
- | |||||
| 16 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 53.41 |
