Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10806906 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Barrier, Vapor   (Replaces: W10844384) In-Stock Immediately $ 32.88

4 W10810488 Panel, Front (includes Nameplate) (black)   (Replaces: W10698612) Special Order $ 387.96

5 W11763736 Access Panel (black)   (Replaces: W10441006) In-Stock Immediately $ 42.25

6 WPW10393264 Nameplate (grey)   (Replaces: W10393264) Special Order $ 67.74

7 W11116870 Bracket, Control   (Replaces: W10641745) Special Order $ 89.95

8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

9 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

10 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

11 W10463662 Spacer, Control Bracket Panel Special Order $ 49.41

1A W10921054 Energy Guide Appelez-nous -
1B W10852540 Use & Care Guide Appelez-nous -
1C W10904612 Tech Sheet Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

4A W10849693 Panel, Front (includes Nameplate) (white)   (Replaces: W10698613) Special Order $ 380.55

4B W10839934 Panel, Front (includes Nameplate) (biscuit/bisque)   (Replaces: W10698614) Special Order $ 340.59

4C WPW10698615 Panel, Front (includes Nameplate) (stainless)   (Replaces: W10698615) In-Stock Immediately $ 397.39

5A WPW10441007 Access Panel (white)   (Replaces: W10441007) Special Order $ 170.94

5B W10441008 Access Panel (biscuit/bisque) Special Order $ 146.51

6A W11178521 Nameplate (white)   (Replaces: W10387117) In-Stock Immediately $ 63.13

8A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

8B WPW10503550 Fastener (biscuit/bisque)   (Replaces: W10503550) Special Order $ 29.00


    View Diagram in Separate Window     Print Icon   Print Part List

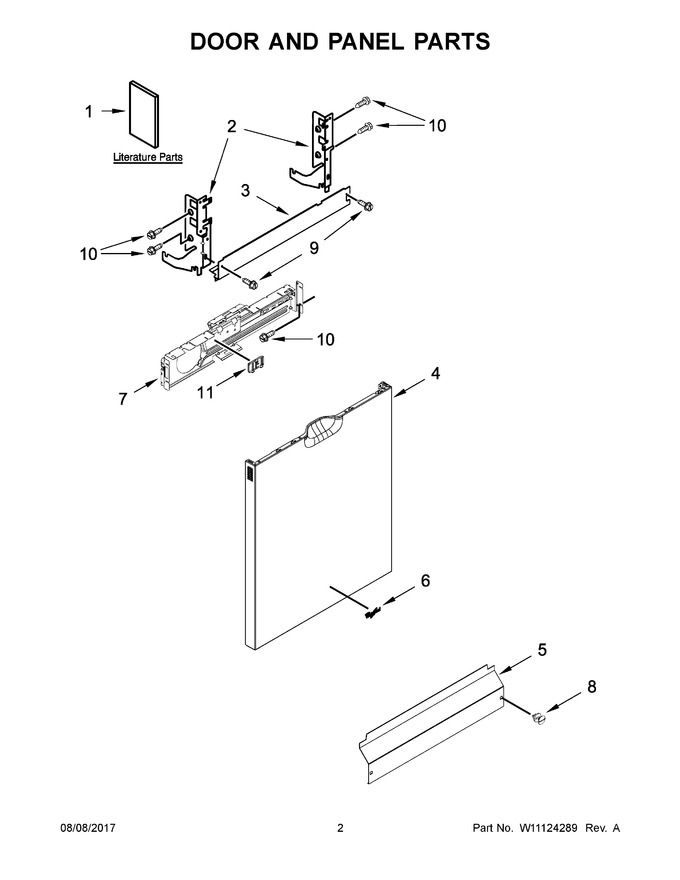

Diagram for WDF560SAFT2
