SELECT A DIAGRAM

01 - Cover Sheet

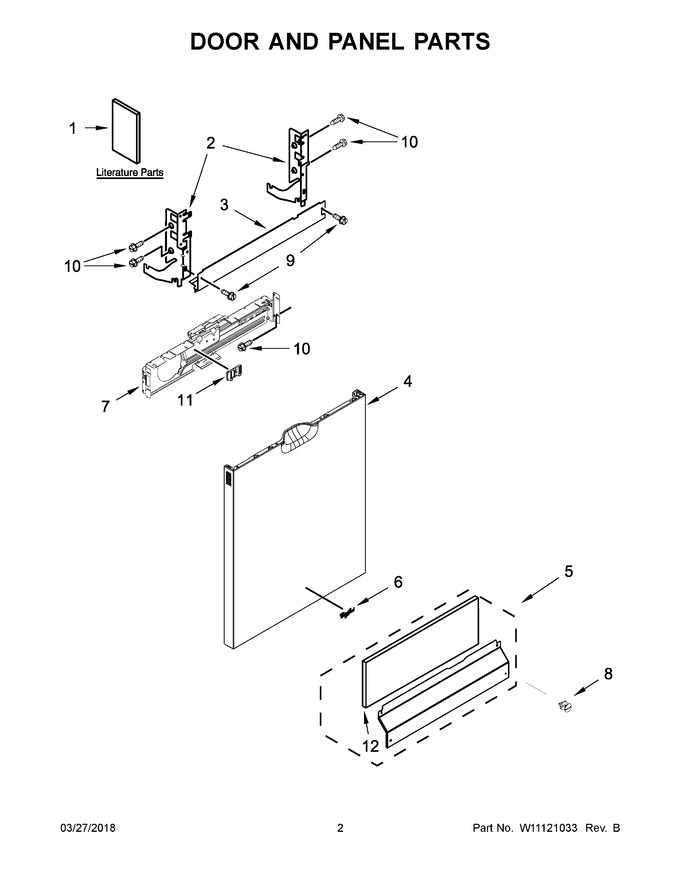

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W11113909		Panel, Front (includes Nameplate) (stainless)   (Replaces: W11040426)		Appelez-nous	-
5	W10827631		Access Panel (black)   (Replaces: W10799402)			Immediately	$ 195.64
6	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
7	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10463662		Spacer, Control Bracket Panel				$ 49.41
12	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
1A	W10921054		Energy Guide		Appelez-nous	-
1B	W10889568		Use & Care Guide		Appelez-nous	-
1C	W10904612		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24

    View Diagram in Separate Window       Print Part List
