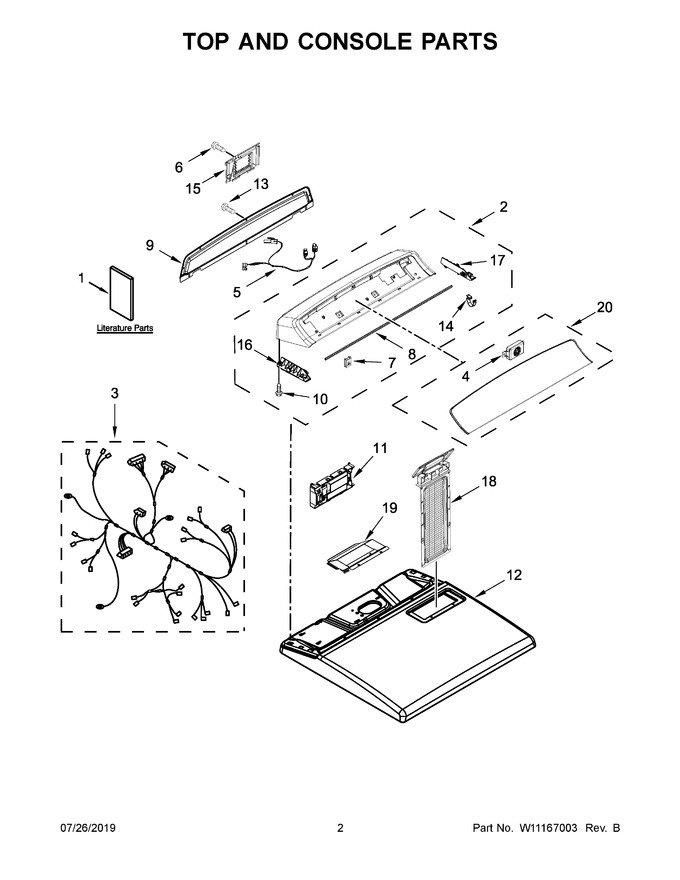

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848818		Installation Instructions		Appelez-nous	-
2	W11050696		Console (white)   (Replaces: W10622070)				$ 172.20
3	W10865052		Wiring Harness		Appelez-nous	-
4	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
5	W10634454		Harness, User Interface		Appelez-nous	-
6	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10775189		Panel, Rear				$ 390.13
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	W11126817		Control, Electronic   (Replaces: W10853087)				$ 499.19
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W11539855		Cover, Terminal Block   (Replaces: W10686798)			Immediately	$ 629.75
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	W11778254		Lint Screen (white)   (Replaces: W10717211)			Immediately	$ 54.63
19	W10662472		Collar, Lint Chute				$ 77.87
20	W10870777		Assembly, Fascia		Appelez-nous	-
1A	W10680128		Guide, Use And Care		Appelez-nous	-
1B	W10865055		Tech Sheet		Appelez-nous	-
1C	W10743379		Quickstart Guide		Appelez-nous	-
