View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

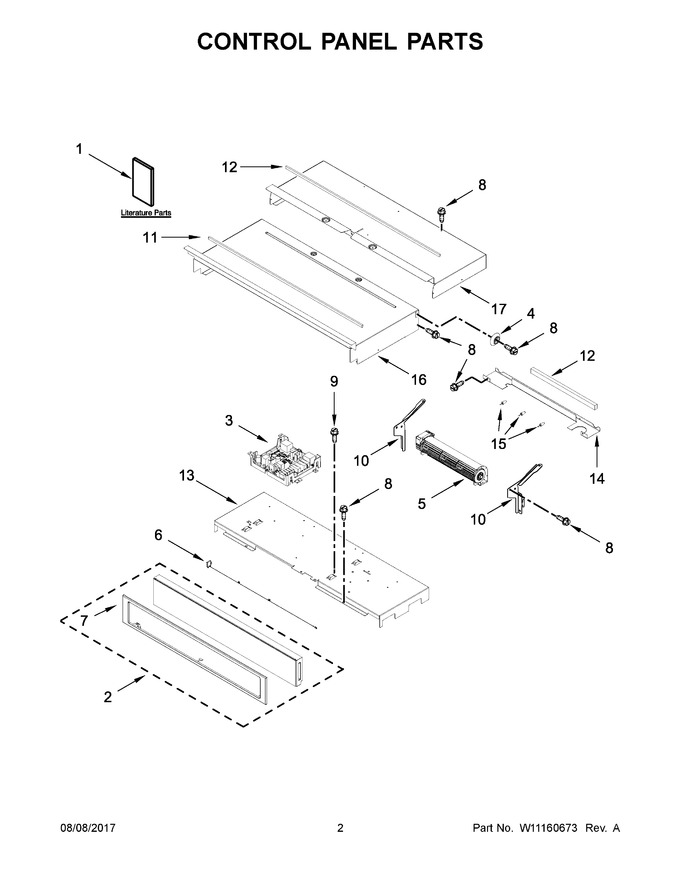

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11108503 | Guide, Use & Care |
|
- | |||||
| 2 | W11428590 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11105050) |
|
$ 919.97 | |||||
| 3 | W11261165 | Manager, Appliance (with Power Supply) (Replaces: W11040194) |
|
Immediately | $ 349.13 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11248652 | Blower (Replaces: W10850518) |
|
Immediately | $ 241.54 | ||||
| 6 | W11537624 | Antenna (Replaces: W11044576) |
|
$ 106.06 | |||||
| 7 | W11156404 | Skin, Control Panel (stainless) (Replaces: W10893983) |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 89.66 | |||||
| 12 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30 |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11040295 | Instructions, Installation |
|
- | |||||
| 1B | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11108419 | Sheet, Tech |
|
- | |||||
| 1D | W11108425 | Diagram, Wiring |
|
- | |||||
| 2A | W11428591 | Assembly, Control Panel (includes Overlay) (sunset Bronze) (Replaces: W11105055) |
|
$ 920.17 | |||||
| 3A | W11261164 | Manager, Appliance (without Power Supply) (Replaces: W10883370) |
|
$ 464.98 | |||||
| 7A | W11162715 | Skin, Control Panel (sunset Bronze) (Replaces: W10892169) |
|
- | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11233570 | Harness, Console (Replaces: W10834514) |
|
Immediately | $ 234.66 | ||||
| NI | W11177679 | Harness, Tod Jumper (Replaces: W10766377) |
|
$ 201.19 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 118.98 | |||||
| NI | W10881993 | Harness, Main |
|
$ 327.58 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 |
