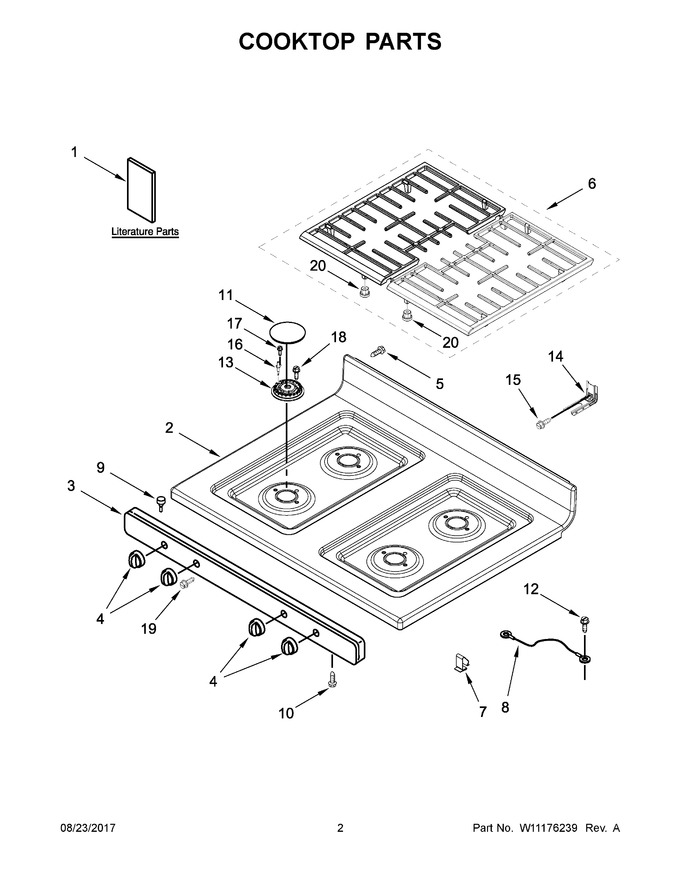

02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts
07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10620413 | Instructions, Installation |
|
- | |||||
| 2 | WPW10535709 | Cooktop (white) (Replaces: W10535709) |
|
$ 334.29 | |||||
| 3 | W10620547 | Panel, Manifold (white) |
|
- | |||||
| 4 | WPW10339443 | Knob, Burner (white) (Replaces: W10339443) |
|
$ 21.54 | |||||
| 5 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 7.30 | |||||
| 6 | W10620480 | Set, Grate (black) |
|
$ 297.15 | |||||
| 7 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 12.44 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 6610473) |
|
$ 86.92 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 14.72 | ||||
| 11 | WPW10183368 | Cap, Burner (black (left Front & Right Front)) (Replaces: W10183368) |
|
$ 89.47 | |||||
| 12 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 8.20 | |||||
| 13 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 14 | WPW10613666 | Bracket, Anti-tip (Replaces: W10613666) |
|
$ 17.96 | |||||
| 15 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 16 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 17 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 18 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 19 | 98005658 | Screw (stainless) |
|
- | |||||
| 20 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 11A | WPW10183369 | Cap, Burner (black (left Rear)) (Replaces: W10183369) |
|
$ 68.37 | |||||
| 11B | WPW10183370 | Cap, Burner (black (right Rear)) (Replaces: W10183370) |
|
$ 67.99 | |||||
| 13A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 13B | WPW10515453 | Burner, Auxiliary (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 19A | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 8.18 | ||||
| 1A | W10620402 | Guide, Use And Care |
|
- | |||||
| 1B | 98007130 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10142327 | Sheet, Tech |
|
- | |||||
| 2A | WPW10535710 | Cooktop (black) (Replaces: W10535710) |
|
$ 334.29 | |||||
| 3A | W10620548 | Panel, Manifold (black) |
|
- | |||||
| 4A | WPW10339442 | Knob, Burner (black) (Replaces: W10339442) |
|
Immediately | $ 18.09 | ||||
| NI | 98015022 | Bushing, Snap |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | 98005896 | Clip, Wire |
|
- | |||||
| NI | 549193 | Clamp, Cord (Replaces: 98005894) |
|
$ 14.06 | |||||
| NI | W11628776 | Harness, Main (Replaces: W10914403) |
|
- |
