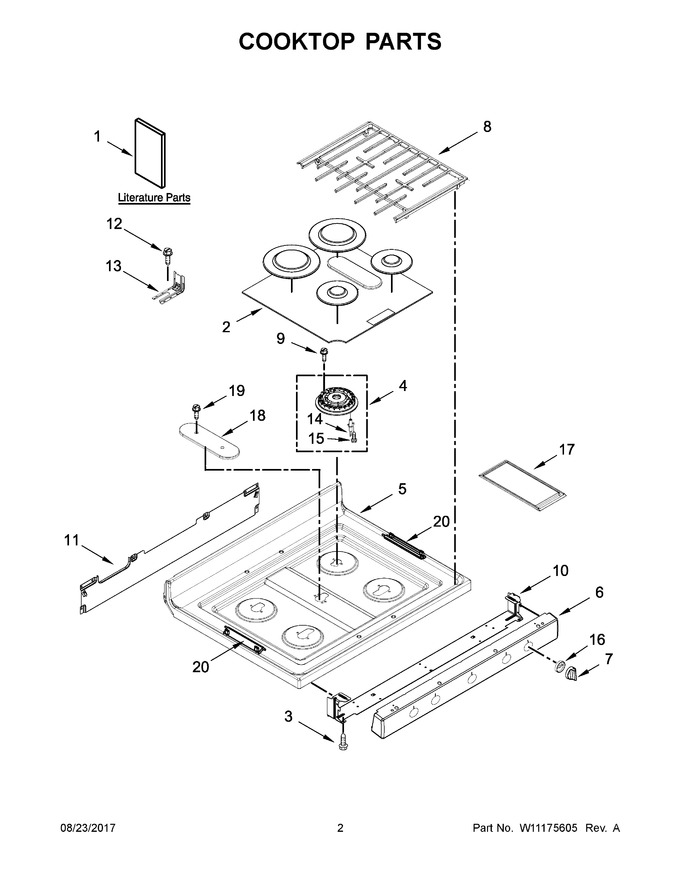

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11085334 | Instructions, Installation |
|
- | |||||
| 2 | W11253659 | Kit, Burner Cap (black) (Replaces: W11049662) |
|
$ 195.72 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | W11175169 | Assembly, Burner (left Front & Right Front) (Replaces: W10883989) |
|
$ 130.80 | |||||
| 5 | W11174143 | Cooktop (black) (Replaces: W10864259) |
|
$ 522.60 | |||||
| 6 | W11176796 | Panel, Manifold (black) (Replaces: W10867880) |
|
Immediately | $ 238.97 | ||||
| 7 | W11176800 | Knob (black) (Replaces: W10912202) |
|
Immediately | $ 80.96 | ||||
| 8 | W11175178 | Kit, Grate (black) (Replaces: W10865170) |
|
$ 364.92 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | W10534174 | Bracket, Manifold Panel |
|
- | |||||
| 11 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 13 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 14 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 15 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 16 | W10912201 | Bezel (black) |
|
- | |||||
| 17 | W11123246 | Griddle (Replaces: W11043399) |
|
$ 102.52 | |||||
| 18 | WPW10333445 | Base, Burner (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 | |||||
| 19 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 20 | N/P | Hinge, Grate (not Serviced) |
|
- | |||||
| 16A | W10918523 | Bezel (white) |
|
- | |||||
| 1A | W11085354 | Guide, Use & Care |
|
- | |||||
| 1B | W11096111 | Tech Sheet (english) |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W11096115 | Diagram, Wiring |
|
- | |||||
| 4A | W11175151 | Assembly, Burner (left Rear) (Replaces: W10883991) |
|
$ 136.13 | |||||
| 4B | W11175167 | Assembly, Burner (right Rear) (Replaces: W10883994) |
|
$ 126.38 | |||||
| 4C | W11175168 | Burner, Fish (center) (Replaces: W10883993) |
|
$ 126.38 | |||||
| 5A | W11178127 | Cooktop (white) (Replaces: W10864262) |
|
- | |||||
| 6A | W11176799 | Panel, Manifold (white) (Replaces: W10867879) |
|
- | |||||
| 7A | W11176806 | Knob (white) (Replaces: W10918417) |
|
$ 78.19 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | W10887353 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10809928 | Harness, Cooktop |
|
$ 206.96 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
