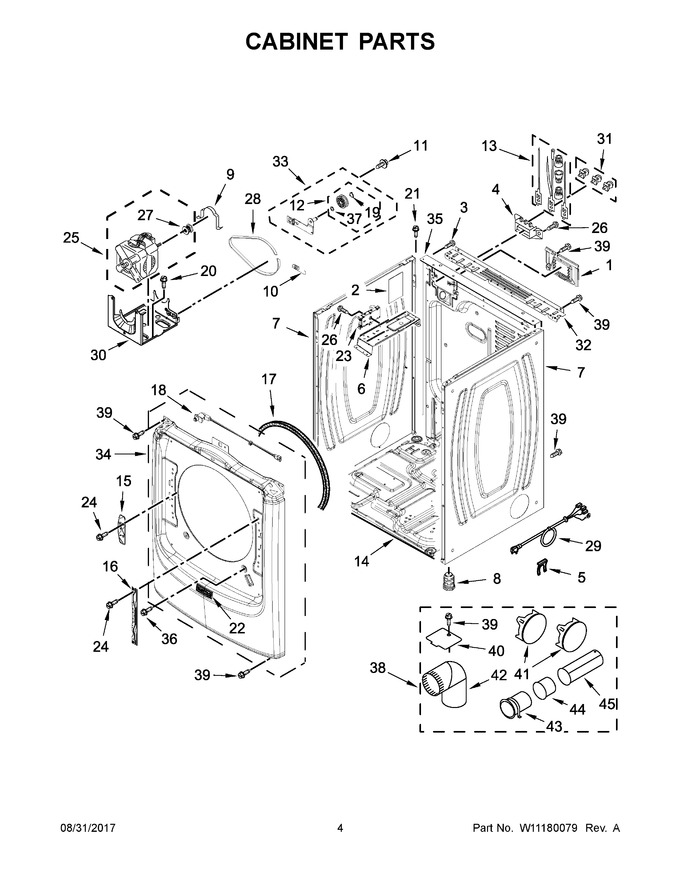

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 104.04
2	W11409002		Pad, Foam   (Replaces: W10504381)				$ 23.76
3	W10850756		Screw   (Replaces: W10773242)				$ 8.20
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
6	W10259611		Bracket, Control				$ 127.30
7	W11233548		Panel, Side (white)   (Replaces: W10468495)				$ 261.33
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
13	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
14	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
15	WPW10208250		Strike, Door   (Replaces: W10208250)				$ 43.86
16	W10315109		Bracket, Door Hinge		Appelez-nous	-
17	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
18	W11427601		Door Switch, Snap In   (Replaces: W10688148)				$ 76.53
19	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
20	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
21	W11590579		Screw   (Replaces: W10794806)				$ 14.73
22	W10908007		Badge, Maytag   (Replaces: W10639171)				$ 64.00
23	W11537215		Control Board   (Replaces: W10847936)			Immediately	$ 357.44
24	W11661566		Screw   (Replaces: W10288126)				$ 14.73
25	W11511154		Assembly, Motor   (Replaces: W10806760)			Immediately	$ 282.52
26	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
27	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
28	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
29	W11710615		Cord, Power   (Replaces: W10712173)			Immediately	$ 82.45
30	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 94.84
31	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
32	WPW10208382		Bracket, Rear   (Replaces: W10208382)				$ 46.18
33	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
34	W11179761		Panel, Front (white)   (Replaces: W10651061)				$ 244.35
35	W10487430		Panel, Rear			Immediately	$ 357.12
36	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
37	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
38	W10323246		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent			Immediately	$ 89.96
39	WP489463		Screw   (Replaces: 489463)				$ 8.25
40	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
41	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
42	WPW10416072		Elbow   (Replaces: W10416072)				$ 28.16
43	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
44	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
45	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
34A	W11222922		Panel, Front (cosmetallic)   (Replaces: W10637124)				$ 361.42
7A	W11315726		Panel, Side (chrome Shadow)   (Replaces: W10468496)			Immediately	$ 321.64
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
