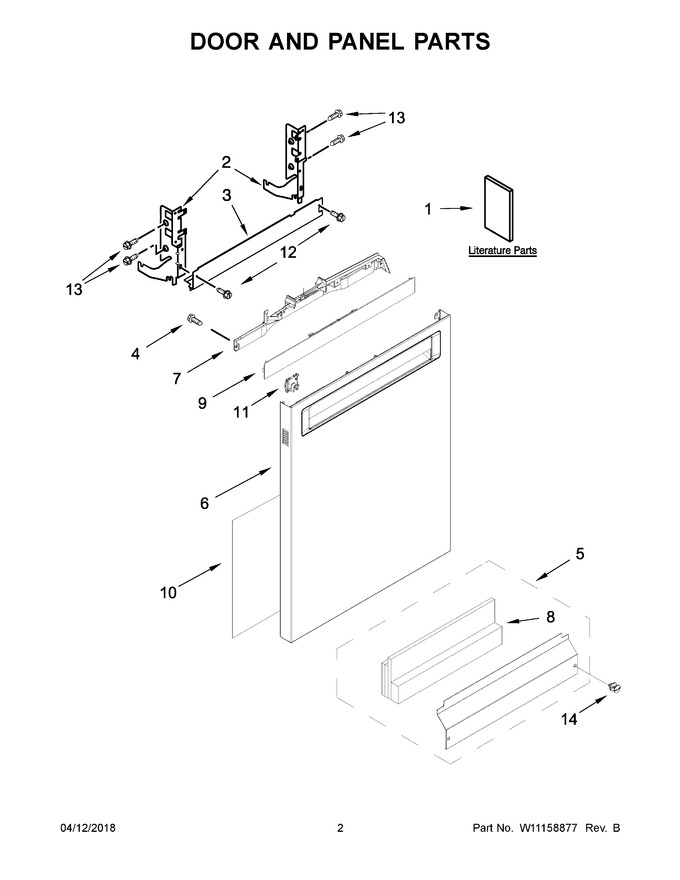

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.55
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 181.97
6	W11157407		Front Panel (includes Item 11) (stainless)   (Replaces: W11024140)			Immediately	$ 459.56
7	W11662067		Cover, Handle Pocket   (Replaces: W10858705)			Immediately	$ 82.01
8	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
9	W11481723		Cover, Display Lens   (Replaces: W10858692)				$ 221.42
10	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
14	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
1A	W10909170		Energy Guide		Appelez-nous	-
1B	W11040103		Use & Care Guide		Appelez-nous	-
1C	W10904612		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
6A	W10878067		Front Panel (includes Item 11) (black Stainless)		Appelez-nous	-
