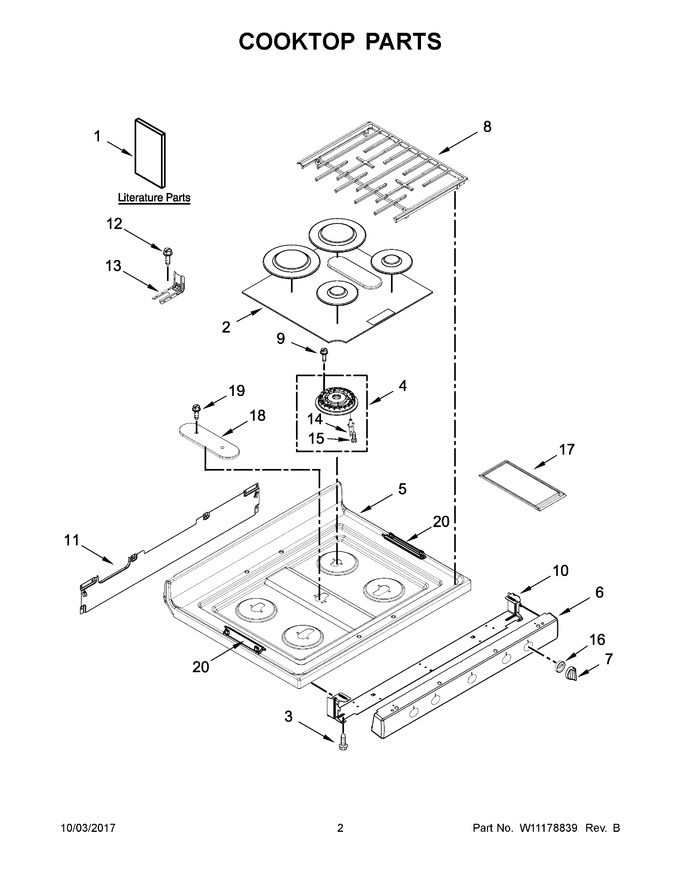

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11085334		Instructions, Installation		Appelez-nous	-
2	W11253659		Kit, Burner Cap (black)   (Replaces: W11049662)				$ 195.72
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W11175169		Assembly, Burner (left Front & Right Front)   (Replaces: W10883989)				$ 130.80
5	W11174143		Cooktop (black)   (Replaces: W10864259)				$ 522.60
6	W11174678		Panel, Manifold (stainless)   (Replaces: W11025417)				$ 311.65
7	W11174696		Knob (stainless)   (Replaces: W10917221)				$ 82.17
8	W11175178		Kit, Grate (black)   (Replaces: W10865170)				$ 364.92
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	W10534174		Bracket, Manifold Panel		Appelez-nous	-
11	W10530070		Bracket, Rear Gas Cooktop		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
14	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 43.77
15	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
16	W11175131		Bezel (stainless)   (Replaces: W10917236)				$ 61.92
17	W11123246		Griddle   (Replaces: W11043399)				$ 102.52
18	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 110.05
19	W11846982		Screw   (Replaces: W10498399)				$ 11.75
20	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
16A	W11175136		Bezel (black Stainless)   (Replaces: W10917224)		Appelez-nous	-
1A	W11085356		Guide, Use & Care		Appelez-nous	-
1B	W11096112		Tech Sheet (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W11096116		Diagram, Wiring		Appelez-nous	-
1F	W11097305		Guide, Internet Connectivity		Appelez-nous	-
4A	W11175151		Assembly, Burner (left Rear)   (Replaces: W10883991)				$ 136.13
4B	W11175167		Assembly, Burner (right Rear)   (Replaces: W10883994)				$ 126.38
4C	W11175168		Burner, Fish (center)   (Replaces: W10883993)				$ 126.38
6A	W11174694		Panel, Manifold (black Stainless)   (Replaces: W10874048)				$ 317.43
7A	W11174697		Knob (black Stainless)   (Replaces: W10917222)				$ 82.38
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W10809928		Harness, Cooktop				$ 206.96
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	W10887354		Harness, Main		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W11025427		Harness, Wifi Module		Appelez-nous	-
