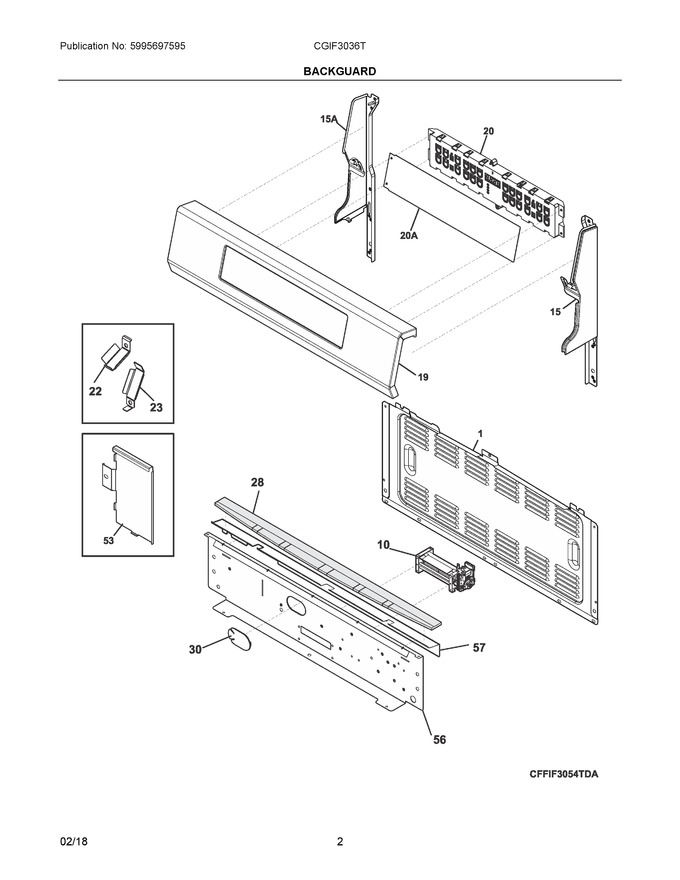

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 64.04
10	5304511092		Fan Assembly, Blower, Condensation			Immediately	$ 292.39
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304511255		Panel, Backguard, Black Stainless, W/clck Brackets				$ 222.71
20	5304514664		Controller, Electronic, Es334isb   (Replaces: 5304514710)			Immediately	$ 934.77
22	5304512931		Bracket, Control Support, Upper, Lci				$ 3.94
23	5304512932		Bracket, Control Support, Lower, Lci				$ 3.94
28	316528701		Insulation, Manifold Panel		Appelez-nous	-
30	316577600		Plug, Button, Oval, Harness				$ 16.54
53	316355000		Shield, Flue, Inner		Appelez-nous	-
56	316234026		Shield, Backguard, Black, Inner		Appelez-nous	-
57	808950203		Shield, Steam				$ 14.32
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
20A	5304511261		Overlay, Control, Black			Immediately	$ 87.63
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	318165800		Spacer, Glass, Foam				$ 19.69
