SELECT A DIAGRAM

01 - Cover Sheet

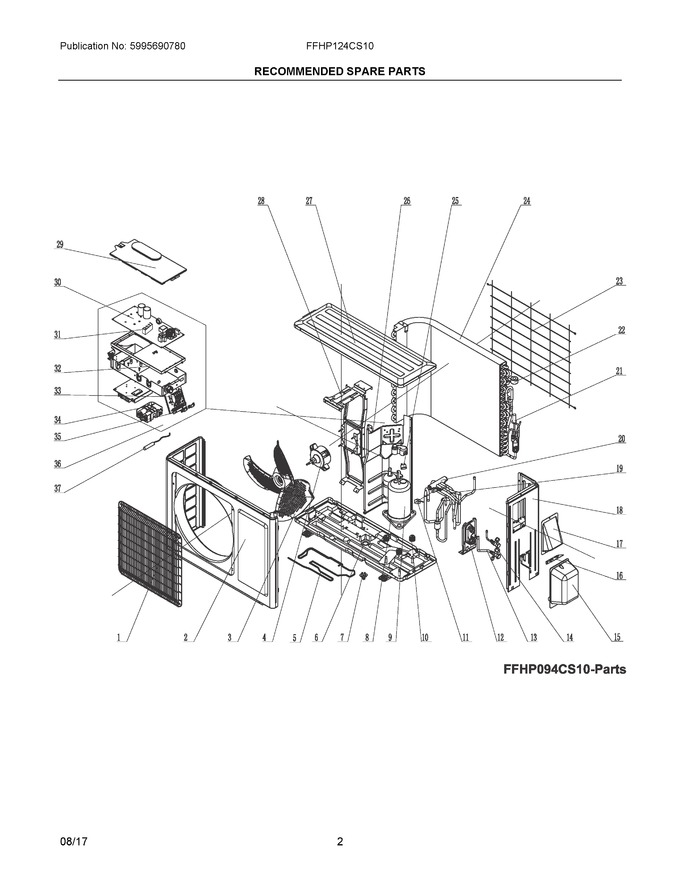

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304482870		Grille, Front		Appelez-nous	-
2	5304513364		Panel, Front		Appelez-nous	-
3	5304505733		Fan Blade, Propeller		Appelez-nous	-
4	5304513350		Motor, Dc, Brushless		Appelez-nous	-
5	5304513351		Heater, Base Pan		Appelez-nous	-
6	5304513352		Base Assembly, Chassis		Appelez-nous	-
7	5304482867		Connector, Drain		Appelez-nous	-
8	5304513353		Heater, Electrical, Compressor		Appelez-nous	-
9	5304513354		Compressor, W/fittings		Appelez-nous	-
10	5304513355		Gasket, Compressor, (3)		Appelez-nous	-
11	5304482909		Coil, 4-way Valve		Appelez-nous	-
12	5304482863		Bracket, Valve Support		Appelez-nous	-
13	5304505736		Valve, Cut-off, 3/8, Gas		Appelez-nous	-
14	5304483768		Valve, Cut-off, 1/4		Appelez-nous	-
15	5304502291		Cover, Valve		Appelez-nous	-
16	5304502224		Plate 1, Wire Protector		Appelez-nous	-
17	5304502225		Shield, Rain, Wiring Cover		Appelez-nous	-
18	5304502292		Panel, Right Side		Appelez-nous	-
19	5304513365		Valve Assembly, 4-way		Appelez-nous	-
20	5304483995		Valve, 4-way		Appelez-nous	-
21	5304513357		Valve Assembly, Exspansion, Electric		Appelez-nous	-
22	5304483687		Coil, Expansion Valve				$ 135.71
23	5304502303		Grille, Rear		Appelez-nous	-
24	5304513366		Condenser, Assembly		Appelez-nous	-
25	5304502570		Overload Protector, Compressor		Appelez-nous	-
26	5304502305		Bulkhead, Partition		Appelez-nous	-
27	5304513359		Top Cover, Plate		Appelez-nous	-
28	5304513367		Support, Motor		Appelez-nous	-
29	5304482853		Cover, Control Box		Appelez-nous	-
30	5304513368		Pc Board, Main		Appelez-nous	-
31	5304484110		Heat Sink		Appelez-nous	-
32	5304502242		Housing, Control Board		Appelez-nous	-
33	5304482856		Terminal Block, Pcb Wiring		Appelez-nous	-
34	5304513362		Capacitor, Assembly, W/box		Appelez-nous	-
35	5304502244		Clamp, Wire		Appelez-nous	-
36	5304513369		Box Assembly, Electric		Appelez-nous	-
37	5304502246		Sensor, Temperature		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
