01 - Cover Sheet

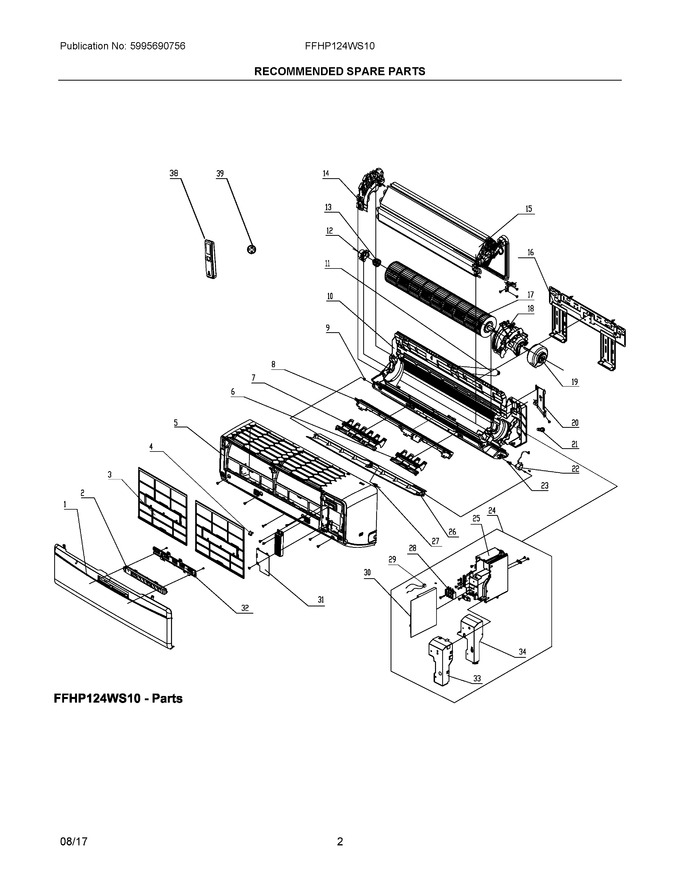

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505705 | Panel, Front |
|
- | |||||
| 2 | 5304505706 | Pc Board, Display/input |
|
$ 146.71 | |||||
| 3 | 5304506538 | Filter, Air |
|
- | |||||
| 4 | 5304513339 | Cover, Screw |
|
- | |||||
| 5 | 5304505707 | Frame, Front Assembly |
|
- | |||||
| 6 | 5304513348 | Louver, Air, (1) |
|
- | |||||
| 7 | 5304513340 | Louver, Air, (3) |
|
- | |||||
| 8 | 5304505708 | Diffuser, Air Vent, Main Louver |
|
- | |||||
| 9 | 5304482905 | Bushing, Louver Shaft, Left |
|
- | |||||
| 10 | 5304505709 | Casing, Rear |
|
- | |||||
| 11 | 5304483590 | Hose, Drain |
|
- | |||||
| 12 | 5304482777 | Bearing Block, Housing, W/o'ring |
|
$ 10.61 | |||||
| 13 | 5304502202 | O'ring, Bearing, Gasket/seal |
|
$ 20.48 | |||||
| 14 | 5304505710 | Support, Evaporator |
|
- | |||||
| 15 | 5304505734 | Evaporator |
|
- | |||||
| 16 | 5304505712 | Plate, Installation, Wall Mount |
|
- | |||||
| 17 | 5304505713 | Blower Wheel, Cross Flow Fan |
|
$ 122.90 | |||||
| 18 | 5304513341 | Press Plate, Motor |
|
- | |||||
| 19 | 5304513342 | Motor, Fan |
|
- | |||||
| 20 | 5304505716 | Clamp, Drain Hose |
|
- | |||||
| 21 | 5304482805 | Drain Plug, Drip Tray |
|
- | |||||
| 22 | 5304505717 | Motor, Louver, Horizontal |
|
$ 377.53 | |||||
| 23 | 5304505718 | Lever, Louver Control, Crank |
|
- | |||||
| 24 | 5304513349 | Box Assembly, Electric |
|
- | |||||
| 25 | 5304513344 | Box, Electrical |
|
- | |||||
| 26 | 5304513345 | Louver, Horizontal |
|
- | |||||
| 27 | 5304502199 | Bushing, Lower Shaft |
|
$ 18.79 | |||||
| 28 | 5304482804 | Terminal Block, 4-bit |
|
- | |||||
| 29 | 5304505808 | Sensor, Temperature |
|
- | |||||
| 30 | 5304505719 | Pc Board, Main, Control/power |
|
- | |||||
| 31 | 5304513346 | Cover Assembly, Electric Box |
|
- | |||||
| 32 | 5304513347 | Press Plate, Display Board |
|
- | |||||
| 33 | 5304505721 | Shield, Cover, Control Box |
|
- | |||||
| 34 | 5304505720 | Cover, Elec Access, Control Box |
|
- | |||||
| 38 | 5304505723 | Remote Control, Transmitter |
|
$ 224.84 | |||||
| 39 | 5304505819 | Holder, Remote Control |
|
- |
