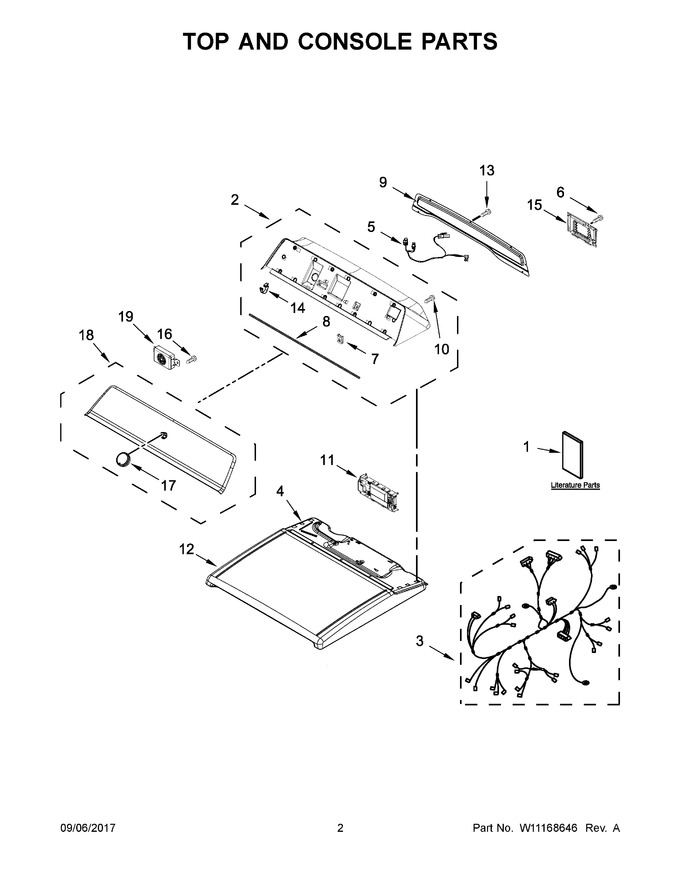

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W10682013		Assembly, Console (chrome Shadow)				$ 381.03
3	W11160366		Wiring Harness, Main		Appelez-nous	-
4	W10185554		Foam, Top		Appelez-nous	-
5	W10849059		Harness, User Interface   (Replaces: W10788429)				$ 184.59
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	W11133021		Control, Electronic   (Replaces: W11098430)				$ 499.19
12	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 358.85
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 104.04
16	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
17	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 53.94
18	W11158457		Fascia   (Replaces: W11098472)				$ 458.91
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
1A	W11089272		Use And Care Guide		Appelez-nous	-
1B	W11089260		Tech Sheet		Appelez-nous	-
1C	W10901544		Wiring Diagram		Appelez-nous	-
1D	W11089276		Quickstart Guide		Appelez-nous	-
