01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Cabinet Parts
04 - Bulkhead Parts

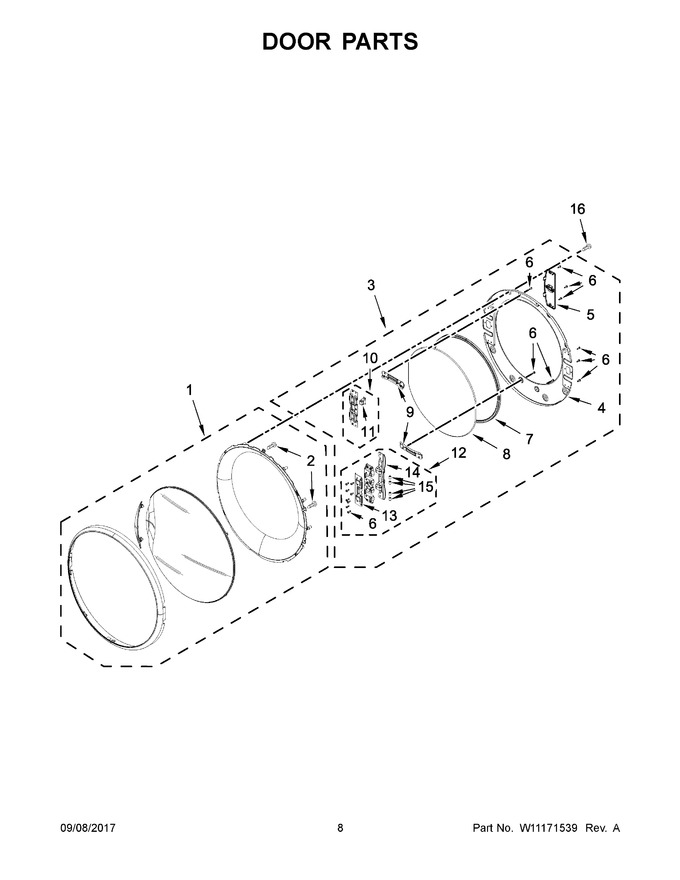

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11168739 | Assembly, Outer Door (chrome Shadow) (Replaces: W10898207) |
|
$ 420.07 | |||||
| 2 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 8.37 | |||||
| 3 | W10811034 | Assembly, Inner Door (chrome Shadow) |
|
$ 94.41 | |||||
| 4 | W10267837 | Door, Inner (chrome Shadow) |
|
$ 188.98 | |||||
| 5 | W10772469 | Cover, Door Catch |
|
$ 85.37 | |||||
| 6 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 7 | W11310035 | Seal, Glass (Replaces: W10329710) |
|
Immediately | $ 86.79 | ||||
| 8 | W10823368 | Glass, Door |
|
$ 314.71 | |||||
| 9 | W10208252 | Bracket, Glass |
|
- | |||||
| 10 | WPW10208254 | Assembly, Door Catch (Replaces: W10208254) |
|
$ 85.34 | |||||
| 11 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 12 | W11051465 | Assembly, Door Hinge (Replaces: W10208414) |
|
Immediately | $ 98.31 | ||||
| 13 | WPW10208419 | Plate, Hinge Retainer (Replaces: W10208419) |
|
$ 85.94 | |||||
| 14 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 117.42 | ||||
| 15 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 21.47 | ||||
| 16 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 |
