SELECT A DIAGRAM

01 - Cover Sheet

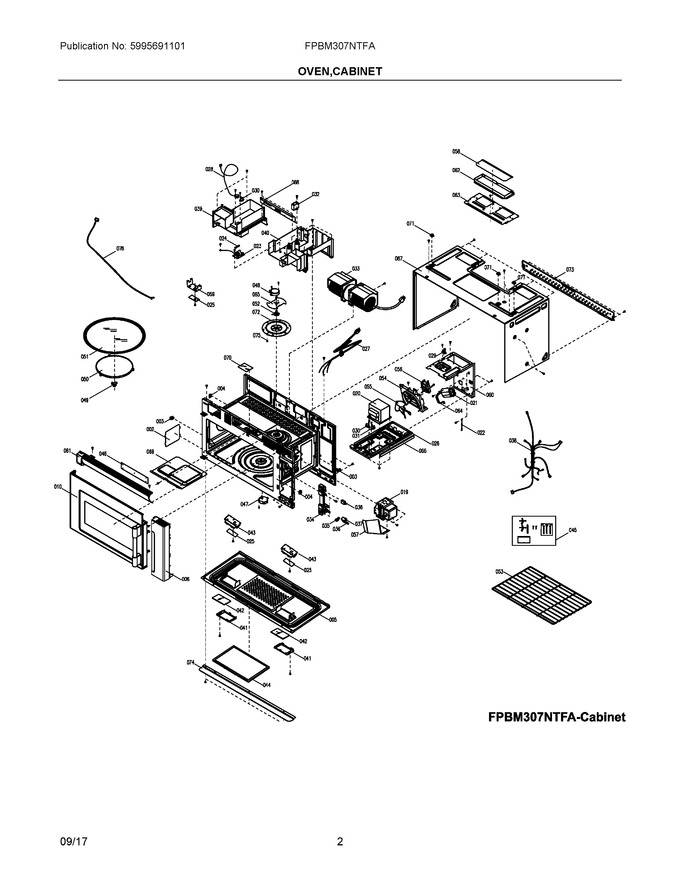

02 - Oven, Cabinet


03 - Control Panel, Door, Misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304509435		Cover, Waveguide				$ 15.27
3	5304509642		Support A, Shelf			Immediately	$ 16.17
4	5304509643		Support B, Shelf				$ 15.37
5	5304499574		Base, Unit Chassis				$ 265.39
6	5304513446		Control Assembly, Stainless		Appelez-nous	-
10	5304513450		Door Assembly, Complete, W/pc Board		Appelez-nous	-
19	5304513456		Magnetron, High Voltage				$ 315.03
20	5304513457		Transformer, High Voltage				$ 460.74
21	5304513458		Capacitor, High Voltage			Immediately	$ 138.21
22	5304513459		Diode, High Voltage			Immediately	$ 33.74
23	5304509452		Filter, Noise, Electronic			Immediately	$ 87.07
24	5304509451		Fuse			Immediately	$ 14.45
25	5304509445		Lamp Assembly, Led			Immediately	$ 57.28
26	5304513460		Plate, Hv Transformer, Mounting		Appelez-nous	-
27	5304509489		Power Cord, Electric		Appelez-nous	-
28	5304509652		Sensor, Humidity				$ 339.40
29	5304513461		Thermostat, 160/95 *v			Immediately	$ 29.94
30	5304513462		Thermostat, 120/0 *v			Immediately	$ 28.38
31	5304513463		Thermostat, 70/40 *v				$ 29.99
32	5304512525		Capacitor, Start		Appelez-nous	-
33	5304513464		Fan Assembly, Venting, W/motor				$ 619.63
34	5304509457		Latch Hook			Immediately	$ 48.65
35	5304509458		Lever, Switch			Immediately	$ 11.30
36	5304509460		Switch, Interlock			Immediately	$ 59.18
37	5304509459		Switch, Monitor			Immediately	$ 34.27
38	5304513465		Harness, Wiring, Main		Appelez-nous	-
39	5304513466		Duct, Air Guide, Lh		Appelez-nous	-
40	5304513467		Duct, Air Guide, Rh		Appelez-nous	-
41	5304509441		Frame, Lens Holder		Appelez-nous	-
42	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
43	5304509442		Cover, Lamp				$ 65.66
44	5304513468		Filter, Grease				$ 177.42
45	5304513469		Mounting Kit, W/templates			Immediately	$ 69.31
46	5304513470		Filter, Charcoal				$ 37.15
47	5304513471		Motor, Turn Table			Immediately	$ 102.44
48	5304509651		Motor, Stirrer Fan				$ 161.40
49	5304513472		Coupler, Turn Table			Immediately	$ 21.96
50	5304509438		Support, Turntable Ring				$ 58.00
51	5304513473		Tray, Turn Table, Glass				$ 232.46
52	5304509650		Shaft, Stirrer Fan				$ 21.69
53	5304513474		Shelf, Wire		Appelez-nous	-
54	5304513475		Guide, Fan		Appelez-nous	-
55	5304509473		Fan Blade, Cooling Fan				$ 17.19
56	5304513476		Motor, Fan				$ 211.47
57	5304513477		Guide, Air, Magnetron				$ 23.94
58	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 37.62
59	5304513478		Bracket, Led Light		Appelez-nous	-
60	5304513479		Duct, Air Guide, Back		Appelez-nous	-
61	5304513480		Grill, Vent				$ 163.43
62	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 32.14
63	5304513481		Cover, Vent Motor				$ 57.09
64	5304513482		Holder, Hv Capacitor		Appelez-nous	-
65	5304509649		Fan Blade, Stirrer				$ 17.67
66	5304509482		Cushion, Foam Pad, Transformer		Appelez-nous	-
67	5304513483		Wrapper, Outer Case		Appelez-nous	-
68	5304513484		Shield, Air		Appelez-nous	-
69	5304513485		Cover, Cavity Lamp		Appelez-nous	-
70	5304509455		Tape, Lamp		Appelez-nous	-
71	5304509436		Mounting Nut Kit			Immediately	$ 16.34
72	5304509626		Cover, Stirrer Fan				$ 55.43
73	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 66.25
74	5304509648		Shield, Heat, Base Plate				$ 105.23
75	5304509625		Pin, Mounting, Stirrer Cover				$ 4.02
76	5304504073		Wire, Connector, Pc Board				$ 145.53
