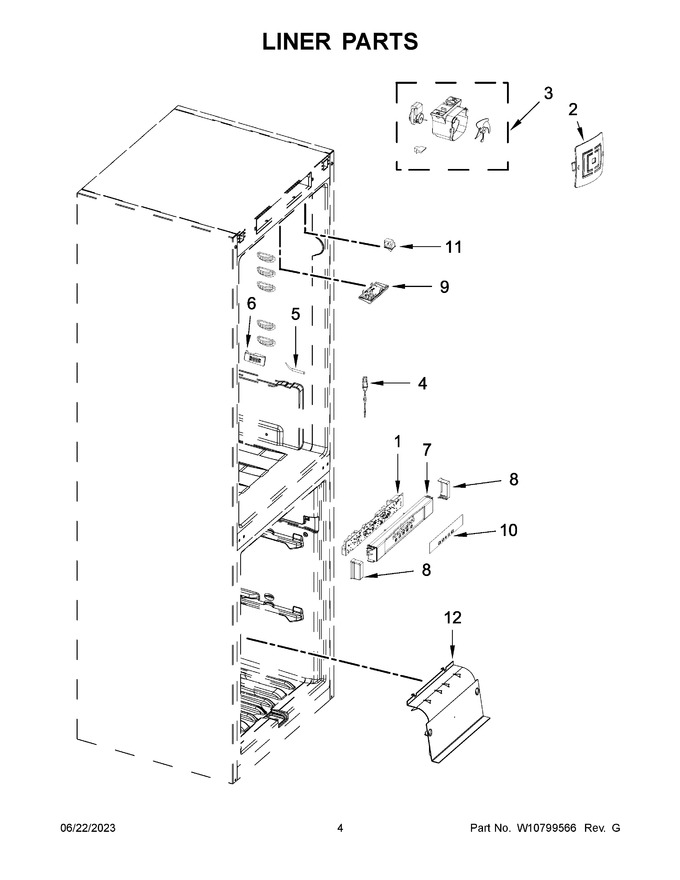

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10805028 | Control, Electronic (Replaces: W10744762) |
|
Immediately | $ 247.41 | ||||
| 2 | W10506654 | Cover, Fan |
|
$ 12.94 | |||||
| 3 | W10518444 | Assembly, Evaporator Motor |
|
$ 128.00 | |||||
| 4 | W10804413 | Pin, Drain |
|
$ 24.68 | |||||
| 5 | W10804410 | Kit, Service Sensor |
|
Immediately | $ 110.45 | ||||
| 6 | W10506496 | Cover, Sensor |
|
$ 12.83 | |||||
| 7 | W10734478 | Housing, Control |
|
Immediately | $ 79.52 | ||||
| 8 | W10804409 | Endcap, Control Housing |
|
$ 11.75 | |||||
| 9 | W10398001 | Led Assembly |
|
Immediately | $ 98.30 | ||||
| 10 | W10749451 | Overlay |
|
$ 86.58 | |||||
| 11 | W10720006 | Switch, Light |
|
$ 35.17 | |||||
| 12 | W10762427 | Conveyor, Air |
|
$ 91.41 |
