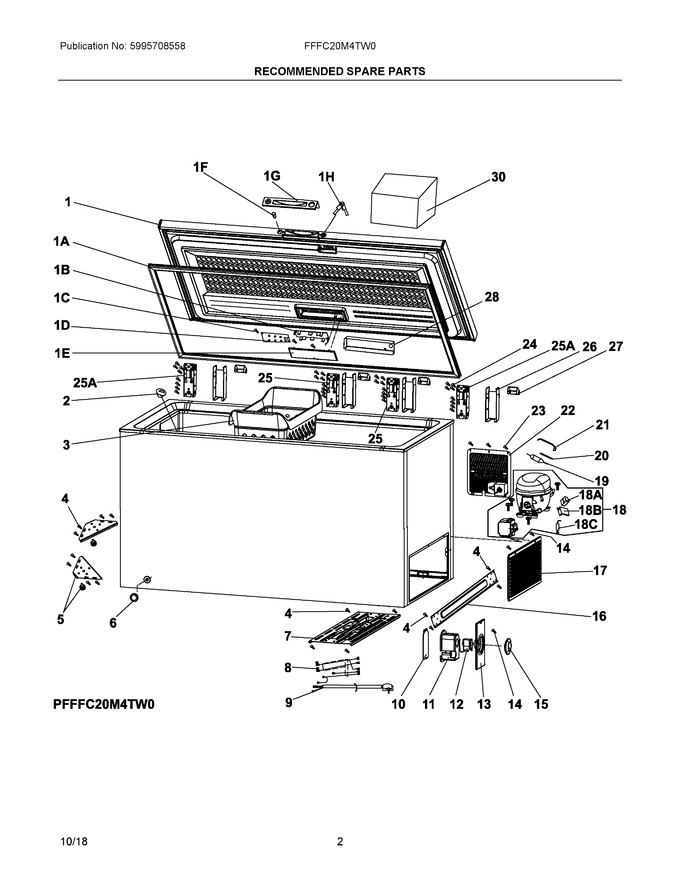

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304512841 | Door Assembly, Freezer, W/liner |
|
Immediately | $ 627.45 | ||||
| 2 | 5304512558 | Cap, Drain Tube |
|
$ 10.85 | |||||
| 3 | 5304512559 | Basket |
|
Immediately | $ 80.12 | ||||
| 4 | 5304492672 | Screw, Tapping, (12) |
|
$ 7.09 | |||||
| 5 | 5304512560 | Foot Assembly, Cabinet, Adjustable |
|
$ 75.33 | |||||
| 6 | 5304512561 | Cap, Exterior Drain |
|
$ 12.65 | |||||
| 7 | 5304512562 | Base, Compressor Mtg. |
|
- | |||||
| 8 | 5304512563 | Harness, Wiring, Main |
|
$ 35.45 | |||||
| 9 | 5304512564 | Power Cord |
|
$ 85.30 | |||||
| 10 | 5304512565 | Cover, Control Box, Rear |
|
- | |||||
| 11 | 5304512566 | Control Box, Temperature |
|
Immediately | $ 44.10 | ||||
| 12 | 5304512843 | Thermostat, Temp. Control |
|
$ 107.42 | |||||
| 13 | 5304512568 | Control Panel, Outer |
|
- | |||||
| 14 | 5304512569 | Screw, Tapping, (3) |
|
- | |||||
| 15 | 5304512570 | Knob, Temp. Control |
|
$ 23.13 | |||||
| 16 | 5304512844 | Bracket, Bottom |
|
- | |||||
| 17 | 5304512572 | Panel, Access, Side |
|
$ 93.13 | |||||
| 18 | 5304519889 | Compressor Assy., Fixed Speed, Reciprocating |
|
$ 560.72 | |||||
| 19 | 5304512846 | Filter, Drier |
|
$ 62.17 | |||||
| 20 | 5304528024 | Tube, Processing (Replaces: 5304512575) |
|
- | |||||
| 21 | 5304512847 | Tube, Connecting |
|
$ 58.12 | |||||
| 22 | 5304512577 | Grill, Venting, Rear |
|
$ 42.08 | |||||
| 23 | 5304512578 | Screw, Tapping, (7) |
|
- | |||||
| 24 | 5304512579 | Screw, Tapping, (24) |
|
$ 6.51 | |||||
| 25 | 5304512836 | Hinge Assembly, 4.5mm Spring |
|
$ 76.77 | |||||
| 26 | 5304512838 | Cover, Hinge, Lower |
|
$ 14.15 | |||||
| 27 | 5304512839 | Cover, Hinge, Upper |
|
$ 6.70 | |||||
| 28 | 5304512580 | Plate, Fixed |
|
- | |||||
| 30 | 5304512848 | Caster Kit, 6 Casters, W/screw Kit |
|
$ 231.04 | |||||
| 18A | 5304508629 | Starter, Relay |
|
Immediately | $ 49.29 | ||||
| 18B | 5304519893 | Overload, Protector |
|
$ 152.54 | |||||
| 18C | 5304470340 | Capacitor |
|
$ 15.12 | |||||
| 1A | 5304512842 | Gasket, Door |
|
$ 117.45 | |||||
| 1B | 5304512552 | Housing, Led Board |
|
$ 18.79 | |||||
| 1C | 5304479804 | Screw, Tapping, Stainless Steel |
|
- | |||||
| 1D | 5304512554 | Board, Led Light |
|
$ 139.14 | |||||
| 1E | 5304512555 | Lens, Led Light |
|
$ 10.85 | |||||
| 1F | 5304512556 | Light, Indicator |
|
$ 36.10 | |||||
| 1G | 5304512557 | Handle, Recessed Pocket |
|
$ 64.29 | |||||
| 1H | 5304512917 | Key, Lock |
|
$ 98.51 | |||||
| 25A | 5304512836 | Hinge Assembly, 4.0mm Spring (Replaces: 5304512837) |
|
$ 76.77 | |||||
| NIA | 5304513289 | Screw Kit, Casters, C20/25 |
|
$ 48.20 |
