SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top

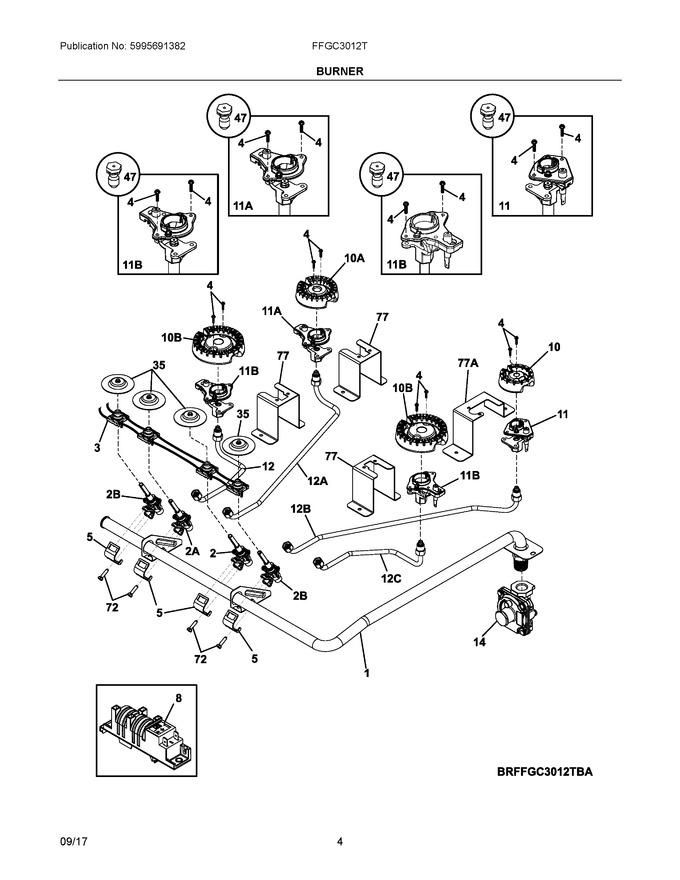

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505688		Manifold, Tube, 30", 4 Valve		Appelez-nous	-
2	5304505693		Valve, Saddle, 680 Btu, Orange Stem				$ 89.83
3	5304527982		Switch Assembly, Ignitor, W/harness   (Replaces: 305595114)				$ 34.88
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
5	357733402		Bracket, Valve Fixing				$ 10.73
8	5304505695		Module, Spark, 4 Outputs			Immediately	$ 75.73
10	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
11	5304498786		Ignitor/orifice Assy., Top Burner, 5k				$ 92.14
12	5304498789		Tube, Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure   (Replaces: 318122727)				$ 144.37
35	5304508440		Bushing, Insulating			Immediately	$ 12.64
47	5304513509		Lp Kit, Gas Conversion		Appelez-nous	-
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	5304498799		Bracket, Ignitor/orifice, Mounting				$ 20.48
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 58.28
10B	316438600		Burner, Sealed, 14k				$ 88.67
11A	5304498787		Ignitor/orifice Assy., Top Burner, 9.5k				$ 133.14
11B	5304498788		Ignitor/orifice Assy., Top Burner, 12k				$ 149.10
12A	5304498790		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304498791		Tube, Burner, Rh Rear		Appelez-nous	-
12C	5304498792		Tube, Burner, Rh Front		Appelez-nous	-
2A	5304505690		Valve, Saddle, 850 Btu, Green Stem			Immediately	$ 77.52
2B	5304505691		Valve, Saddle, 1125 Btu, Blue Stem			Immediately	$ 76.68
77A	5304498800		Bracket, Ignitor/orifice, 5k Burner, Mounting		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 6.30
NIA	318199779		Wiring Harness, Ignitor				$ 129.10

    View Diagram in Separate Window       Print Part List
