SELECT A DIAGRAM

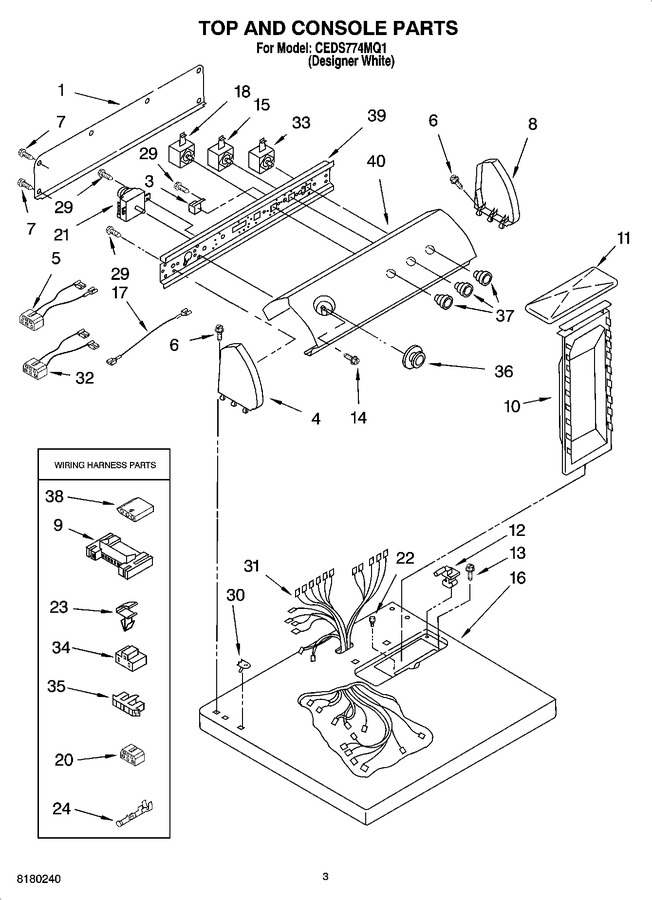

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 83.40
5	3397695		Wire, Jumper (guard On/off)				$ 86.40
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 83.40
9	3395683		Housing, Connector (motor)			Immediately	$ 51.86
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding				$ 13.22
15	WP3405156		Switch, Finish Guard   (Replaces: 3405156)				$ 145.51
16	8271390		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
20	3347243		Connector 6-circuit		Appelez-nous	-
21	WP3979618		Timer, 60 Hz.   (Replaces: 3979618)				$ 366.93
22	297535		Bumper, Lint Lid		Appelez-nous	-
23	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
24	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299873		Harness, Wiring		Appelez-nous	-
32	8539893		Wire-jumper Assembly (temperature)   (Replaces: 3396029)				$ 18.84
33	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
34	3401144		Connector, (pts Relay)				$ 12.20
35	3397269		Connector, Timer				$ 25.55
36	WP3957746		Timer Knob Assembly   (Replaces: 8283182)				$ 54.75
37	WP3957796		Knob, Control (3)   (Replaces: 3950759)			Immediately	$ 54.83
38	3936144		Connector				$ 20.21
39	8271418		Bracket, Control				$ 57.15
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
40	3406839		Dry Rack			Immediately	$ 65.68
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
40	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	3977938		Panel, Control		Appelez-nous	-
40	N/A		Accessory Parts		Appelez-nous	-
40	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85

    View Diagram in Separate Window       Print Part List
