Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55

2 4449748 Screw Special Order $ 14.23

3 W10105790 Bumper & Screw Special Order $ 7.41

4 W10888661 Manager, Appliance   (Replaces: W10859106) In-Stock Immediately $ 516.62

5 W10145743 Tube, Vent Appelez-nous -
6 W10169756 Lens, Light Special Order $ 42.19

7 WPW10307114 Assembly, Oven Light   (Replaces: W10307114) In-Stock Immediately $ 116.01

8 WPW10169757 Bulb, Light   (Replaces: W10169757) In-Stock Immediately $ 47.38

9 WP4455605 Receiver, Hinge (left)   (Replaces: 4455605) In-Stock Immediately $ 127.70

10 WPW10115831 Frame, Front   (Replaces: W10115831) Special Order $ 351.89

11 W10145392 Panel, Back Bottom Appelez-nous -
12 WPW10511278 Module, Spark Dsi   (Replaces: W10511278) In-Stock Immediately $ 239.59

13 W10145362 Bracket-board, Dsi Special Order $ 81.33

14 N/P Liner, Oven (not Serviced) Appelez-nous -
15 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 95.83

16 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

17 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

18 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.72

19 WP4450249 Thermostat (tod)   (Replaces: 4450249) In-Stock Immediately $ 211.50

20 W10235557 Assembly, Drawer Appelez-nous -
21 W11368870 Retainer, Gasket (30")   (Replaces: W10157511) Special Order $ 24.91

22 W10321813 Panel, Back Top Appelez-nous -
23 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

24 W11675844 Gasket, Oven (30")   (Replaces: W10850858) In-Stock Immediately $ 74.56

25 W10317437 Bracket, Broil Standoff Appelez-nous -
26 W10145377 Support, Channel Appelez-nous -
27 W11661180 Burner, Broil   (Replaces: W10311335) Special Order $ 175.93

28 W11446096 Electrode, Broil   (Replaces: W10332287) In-Stock Immediately $ 84.02

29 W10308040 Bracket, Bake Burner Appelez-nous -
30 W10308051 Box, Broil Appelez-nous -
31 W11643161 Burner, Bake   (Replaces: W10878504) In-Stock Immediately $ 185.14

32 WPW10145744 Support, Bake Pan   (Replaces: W10145744) Special Order $ 214.15

33 W10310985 Cover, Broil Appelez-nous -
34 W11448312 Electrode, Bake   (Replaces: W10878506) In-Stock Immediately $ 72.90

35 W11688851 Insulation, Broil Cover   (Replaces: W10311009) Appelez-nous -
36 WPW10272546 Bottom, Oven   (Replaces: W10272546) In-Stock Immediately $ 222.79

37 W10813915 Tube, Broil Appelez-nous -
38 W10813909 Tube, Bake (right) Appelez-nous -
39 WP12992902 Screw   (Replaces: 12992902) Special Order $ 11.91

40 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

9A WP4455606 Receiver, Hinge (right)   (Replaces: 4455606) In-Stock Immediately $ 131.74

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W11688580 Insulation, Back, 30   (Replaces: W10299350) Appelez-nous -
NI W11684890 Insulation, Bottom   (Replaces: W10299354) Appelez-nous -
NI W11661177 Insulation, Wrap, 30   (Replaces: W10282810) Special Order $ 162.50


    View Diagram in Separate Window     Print Icon   Print Part List

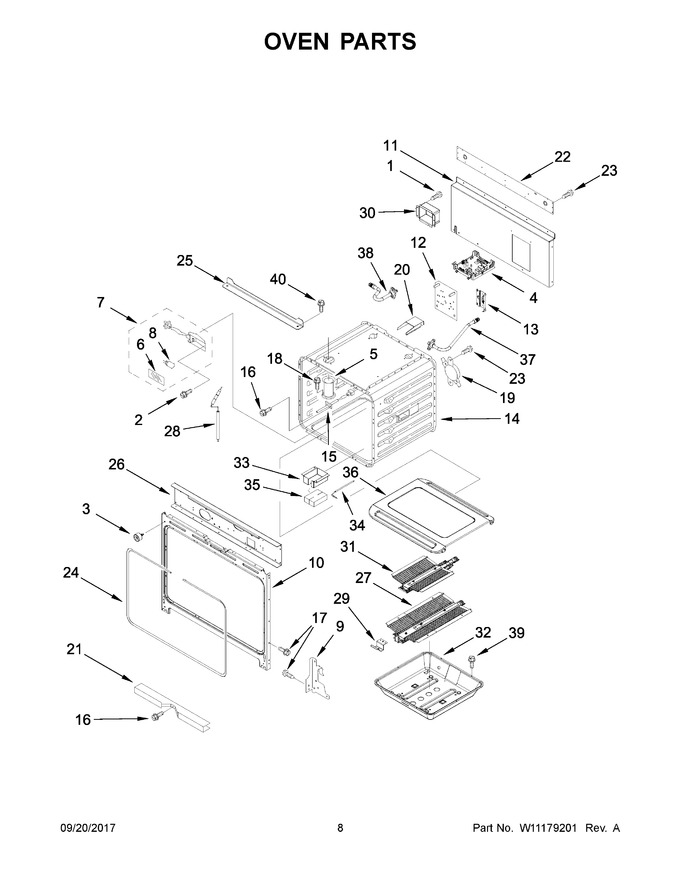

Diagram for JLRP430WP01
