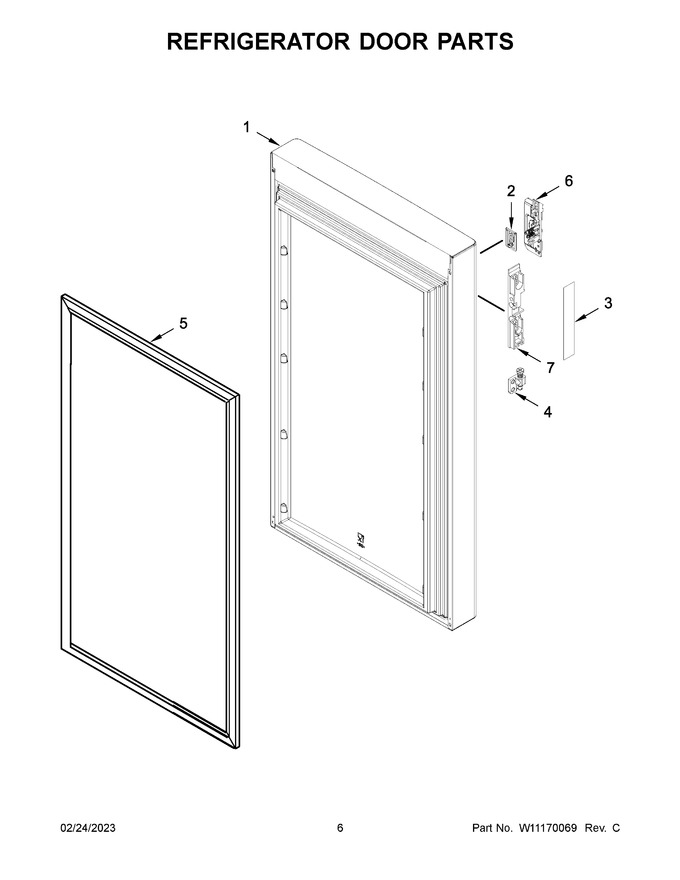

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10753516		Door, Refrigerator				$ 693.52
2	W10556651		Spacer, Door Panel				$ 24.59
3	W11727835		Cover   (Replaces: W10804389)				$ 20.95
4	W10748034		Support (left Hand)				$ 63.07
5	W11625078		Gasket, Door   (Replaces: W10804398)				$ 221.10
6	W11416744		Bracket, Door Panel Mounting (left Hand)   (Replaces: W10748071)				$ 78.37
7	W11416054		Bracket, Door Panel Adjusting (left Hand)   (Replaces: W10747767)			Immediately	$ 78.37
4A	W10748042		Support (right Hand)				$ 63.52
6A	W10748078		Bracket, Door Panel Mounting (right Hand)				$ 63.51
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W10775677		Hardware, Installation				$ 76.10

    View Diagram in Separate Window       Print Part List
