SELECT A DIAGRAM

01 - Cover Sheet

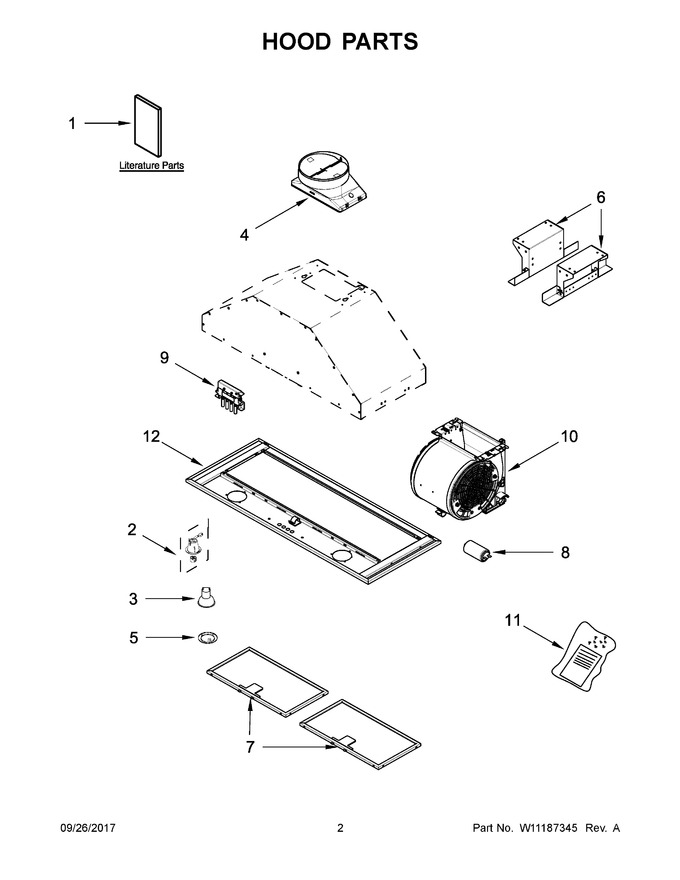

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10487239		Use And Care Guide		Appelez-nous	-
2	WPW10370558		Socket, Light   (Replaces: W10370558)				$ 87.43
3	WPW10291579		Bulb, Light   (Replaces: W10291579)			Immediately	$ 206.90
4	W10847841		Damper, Hood   (Replaces: W10592040)				$ 156.03
5	W10351924		Bezel, Lamp				$ 197.59
6	WPW10531090		Mounting Bracket, Hood Liner   (Replaces: W10531090)				$ 299.42
7	WPW10531087		Filter, Grease   (Replaces: W10531087)				$ 340.50
8	W11328673		Capacitor   (Replaces: W10735734)			Immediately	$ 65.55
9	W10531088		Control, Push Button			Immediately	$ 236.28
10	W10531089		Blower, Fan		Appelez-nous	-
11	W10531092		Hardware, Installation   (Replaces: W11187165)				$ 66.10
12	WPW10531091		Plate, Face Panel   (Replaces: W10531091)				$ 336.79
NI	W10576675		Accessories, Strip, Cabinet Filler		Appelez-nous	-
NI	W10490327		Accessories, Face Panel Rear Extension (for 30" X 18" Cabinet)				$ 122.23
NI	W10490310		Accessories, Face Panel (for 36" X 18" Cabinet)				$ 504.71
NI	W10490330		Accessories, Kit, Recirculation (for Non-vented Installations Only)				$ 115.75
NI	W10272068		Accessories, Kit, Charcoal Filter (for Non-vented Installations Only)			Immediately	$ 71.11
NI	W10446915		Accessories, Kit, 6" Makeup Air				$ 351.69

    View Diagram in Separate Window       Print Part List
