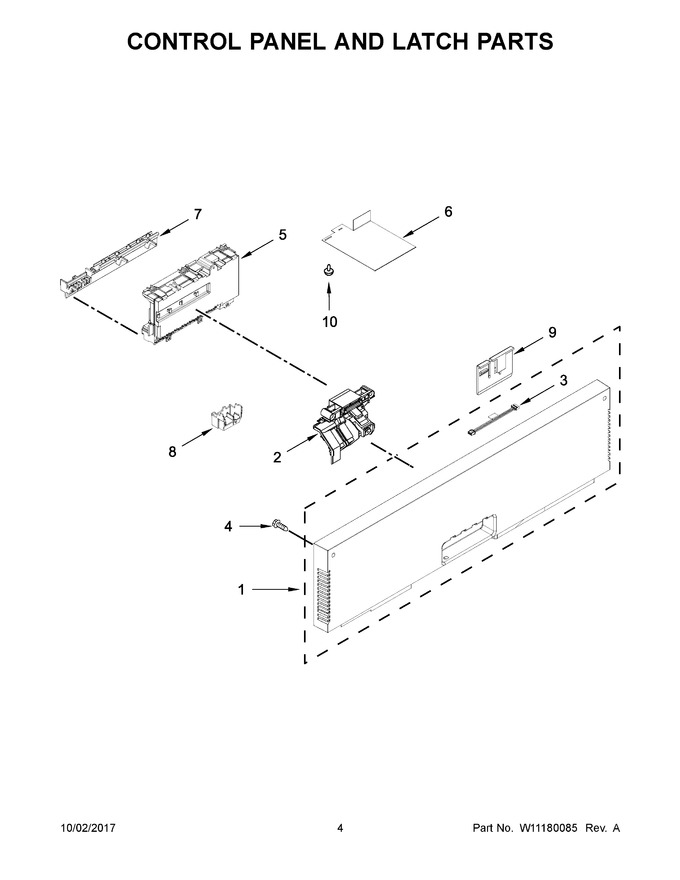

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11366637 | Console Assembly (includes Insert) (black) (Replaces: W10909695) |
|
$ 320.48 | |||||
| 2 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 30.76 | ||||
| 3 | W10898167 | Jumper, 4-wire |
|
$ 18.88 | |||||
| 4 | W10381476 | Screw |
|
$ 22.46 | |||||
| 5 | W11308811 | Control, Electronic (Replaces: W10901638) |
|
Immediately | $ 320.97 | ||||
| 6 | W10355484 | Shield, Control |
|
- | |||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 19.49 | |||||
| 8 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 7.70 | |||||
| 9 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 10 | WP3400924 | Retainer, Push In (Replaces: 3400924) |
|
Immediately | $ 40.85 |
