SELECT A DIAGRAM
01 - Cover Sheet

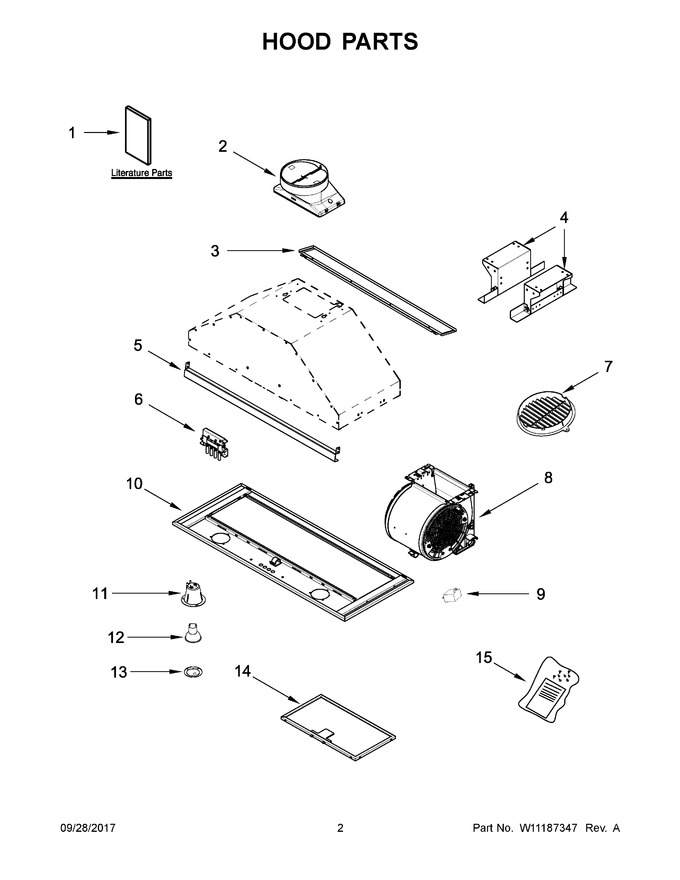

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10722649 | Guide, Use And Care |
|
- | |||||
| 2 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 3 | W10762275 | Extension, Faceplate |
|
- | |||||
| 4 | WPW10531090 | Mounting Bracket, Hood Liner (Replaces: W10531090) |
|
$ 269.48 | |||||
| 5 | W10762274 | Faceplate |
|
- | |||||
| 6 | W10531088 | Control, Push Button |
|
Immediately | $ 212.65 | ||||
| 7 | W10762273 | Deflector |
|
- | |||||
| 8 | W10531089 | Blower, Fan |
|
- | |||||
| 9 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 10 | WPW10531091 | Plate, Face Panel (Replaces: W10531091) |
|
$ 303.11 | |||||
| 11 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 78.69 | |||||
| 12 | WPW10291579 | Bulb, Light (Replaces: W10291579) |
|
Immediately | $ 186.21 | ||||
| 13 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 14 | WPW10531087 | Filter, Grease (Replaces: W10531087) |
|
$ 306.45 | |||||
| 15 | W10762276 | Hardware, Installation |
|
$ 100.76 | |||||
| NI | W10446915 | Accessories, Kit, 6" Makeup Air |
|
$ 316.52 | |||||
| NI | W10272068 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 64.00 |
