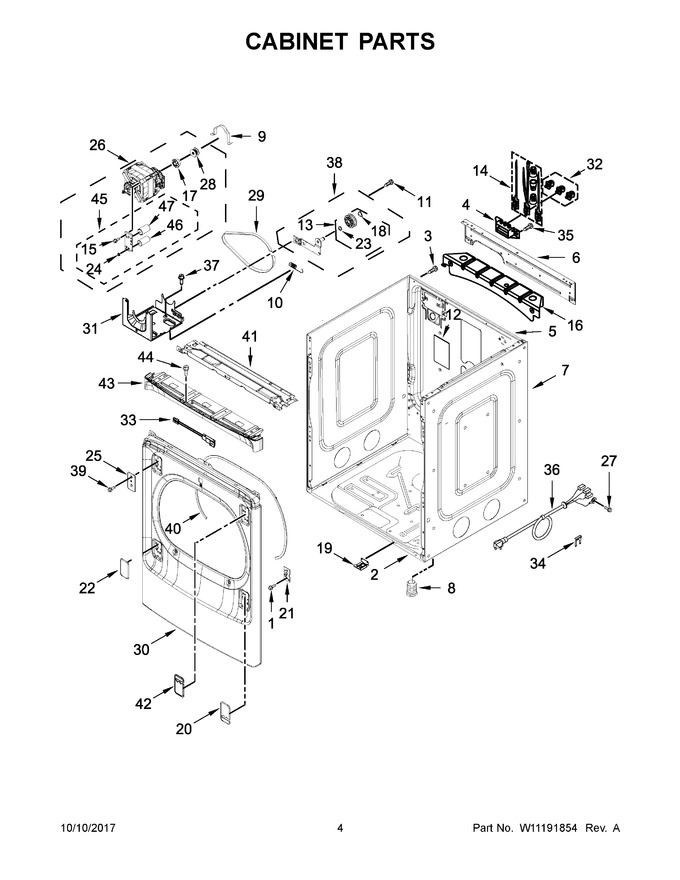

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6-920119		Screw		Appelez-nous	-
2	W10613683		Base, Cabinet				$ 181.41
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
5	W10824896		Panel, Rear				$ 280.18
6	W10622396		Bracket, Upper Rear Panel		Appelez-nous	-
7	W10663407		Cabinet (white)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 24.26
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	W11409002		Pad, Foam   (Replaces: W10504381)				$ 21.38
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 29.26
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
15	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.62
16	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
17	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.71
19	W10632347		Spacer Bracket, Lower		Appelez-nous	-
20	W10627438		Hinge Cover, Bottom (white)		Appelez-nous	-
21	W10596959		Bracket, Hinge				$ 20.00
22	W10627437		Plug, Hinge (white)		Appelez-nous	-
23	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 6.80
24	W10759923		Nut   (Replaces: W10604214)				$ 7.52
25	W10857673		Plate, Front Panel (white)		Appelez-nous	-
26	W11448775		Motor Assembly   (Replaces: W10824899)				$ 372.00
27	W10850756		Screw   (Replaces: W10773242)				$ 7.38
28	W10786088		Pulley, Motor				$ 74.55
29	W11628798		Belt, Drive   (Replaces: W10597350)				$ 31.96
30	W10884829		Panel, Front (white)   (Replaces: W10627425)				$ 288.34
31	W10578053		Bracket, Motor Mounting				$ 83.00
32	279393		Screw Kit, Terminal Block			Immediately	$ 50.09
33	W10761357		Switch, Door		Appelez-nous	-
34	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.99
35	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
36	W11710615		Cord, Power   (Replaces: W10712173)			Immediately	$ 78.30
37	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
38	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 32.20
39	W10704731		Screw		Appelez-nous	-
40	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
41	W10627432		Bracket, Front Console		Appelez-nous	-
42	W10627436		Hinge Cover, Top (white)		Appelez-nous	-
43	W11101822		Cover Assembly, Front Panel (white)   (Replaces: W10756879)		Appelez-nous	-
44	WP8534022		Screw   (Replaces: 8534022)				$ 7.53
45	W10565150		Bracket Assembly				$ 95.88
46	W10442539		Capacitor, Motor Run				$ 80.89
47	W10701357		Capacitor, Motor Start				$ 127.61
20A	W10627439		Hinge Cover, Bottom (grey)		Appelez-nous	-
22A	W10627445		Plug, Hinge (grey)		Appelez-nous	-
25A	W10857675		Plate, Front Panel (grey)				$ 183.83
30A	W10884830		Panel, Front (chrome Shadow)   (Replaces: W10627426)				$ 296.73
42A	W10627444		Hinge Cover, Top (grey)		Appelez-nous	-
43A	W11101823		Cover Assembly, Front Panel (chrome Shadow)   (Replaces: W10756880)		Appelez-nous	-
7A	W10681832		Cabinet (chrome Shadow)		Appelez-nous	-
NI	W10858320		Dryer Exhaust Kit Not Included, 4 Way Vent Kit				$ 109.74
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70

    View Diagram in Separate Window       Print Part List
