SELECT A DIAGRAM

01 - Cover Sheet

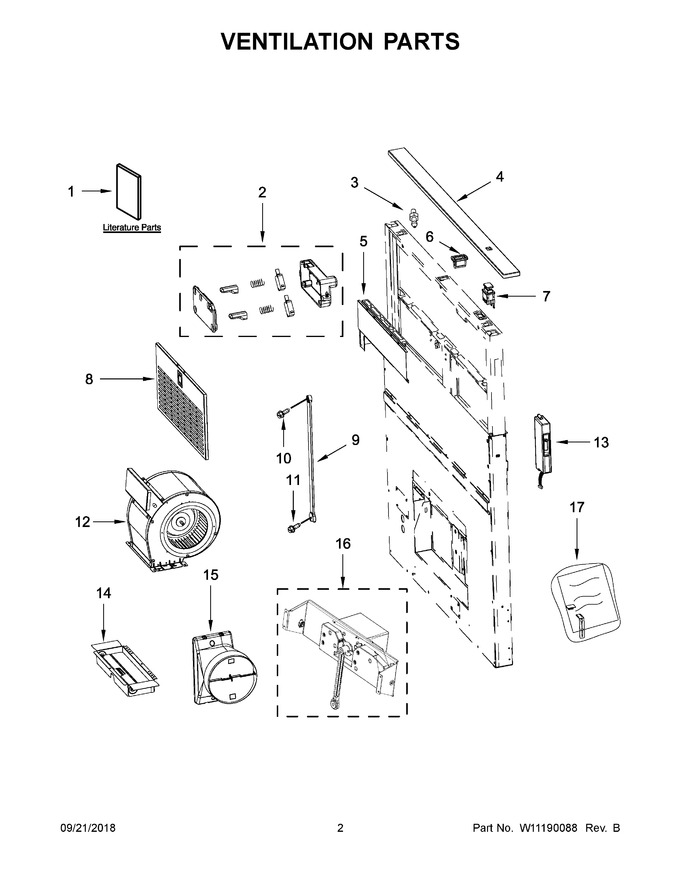

02 - Ventilation Parts


03 - Motor Assembly Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10342491		Use And Care Guide / Installation Instructions		Appelez-nous	-
2	W11666423		Kit, Switch Filter   (Replaces: W11097349)			Immediately	$ 89.06
3	W10421517		Clip, Top Trim				$ 9.05
4	W10421520		Trim, Top (30" Stainless)		Appelez-nous	-
5	W10798407		Cover, Front (30" Model)		Appelez-nous	-
6	WPW10421518		Clip, Top Trim   (Replaces: W10421518)				$ 9.33
7	W11230930		Button, Control   (Replaces: W10899381)			Immediately	$ 106.40
8	W10422878		Filter, Grease (30" Model)		Appelez-nous	-
9	WPW10421280		Arm, Upper   (Replaces: W10421280)				$ 100.85
10	WPW10422765		Screw Upper   (Replaces: W10422765)				$ 24.77
11	WPW10422764		Screw Lower   (Replaces: W10422764)			Immediately	$ 26.92
12	W11672683		Assembly, Blower   (Replaces: W10849492)			Immediately	$ 715.00
13	W11088943		Control, Hood   (Replaces: W11088233)			Immediately	$ 312.60
14	WPW10291572		Damper, Hood   (Replaces: W10291572)				$ 195.58
15	WPW10313841		Damper, Hood   (Replaces: W10313841)				$ 199.49
16	W11187731		Assembly, Motor (see Motor Assembly Parts Page For Full Breakdown)   (Replaces: W11187308)			Immediately	$ 795.55
17	W11188522		Hardware, Installation   (Replaces: W11188531)			Immediately	$ 116.41
4A	W10421522		Trim, Top (36" Stainless)			Immediately	$ 268.30
5A	W10421449		Cover, Front (36" Model)   (Replaces: W10798400)				$ 197.56
8A	W10425128		Filter, Grease (36" Model)		Appelez-nous	-
NI	W10387679		Accessories, Trim, Top (36" Black)		Appelez-nous	-
NI	W10388421		Accessories, Trim, Top (30" White)		Appelez-nous	-
NI	W11174413		Accessories, 36" Tape Kit   (Replaces: W10798404)				$ 122.22
NI	W11174412		Accessories, 30" Tape Kit   (Replaces: W10798405)				$ 118.09
NI	W10388422		Accessories, Trim, Top (36" White)		Appelez-nous	-
NI	W10387678		Accessories, Trim, Top (30" Black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
