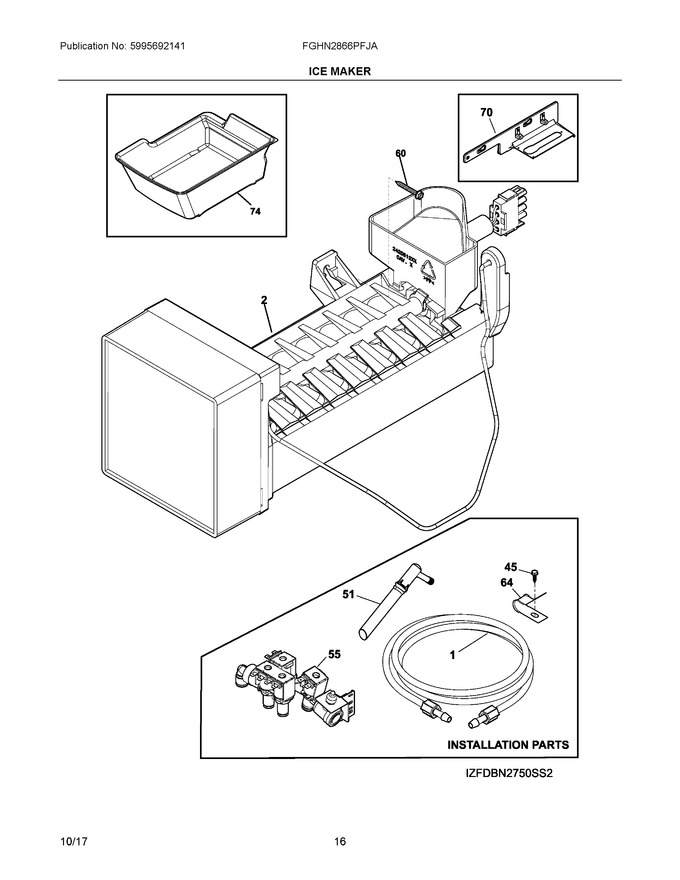

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220204 | Tube-water, 93.5", Brown/tan, Filter Base To, Primary Valve (Replaces: 242220201) |
|
Immediately | $ 44.80 | ||||
| 2 | 241798233 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798226) |
|
Immediately | $ 287.40 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 51 | 242169406 | Tubing Assembly, Water, 1/4 - 44", Green |
|
- | |||||
| 55 | 242252702 | Valve, Solenoid, Triple |
|
Immediately | $ 147.46 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 13.39 | |||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 78.75 | |||||
| 74 | 5304504277 | Container-ice |
|
$ 142.54 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 21.26 | |||||
| NIA | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIB | 240555002 | Screw, Hex Washer Head, 8-32t X 0.375 (Replaces: 241690701) |
|
Immediately | $ 14.96 | ||||
| NIB | 242220204 | Tube-water, 93.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 44.80 |
