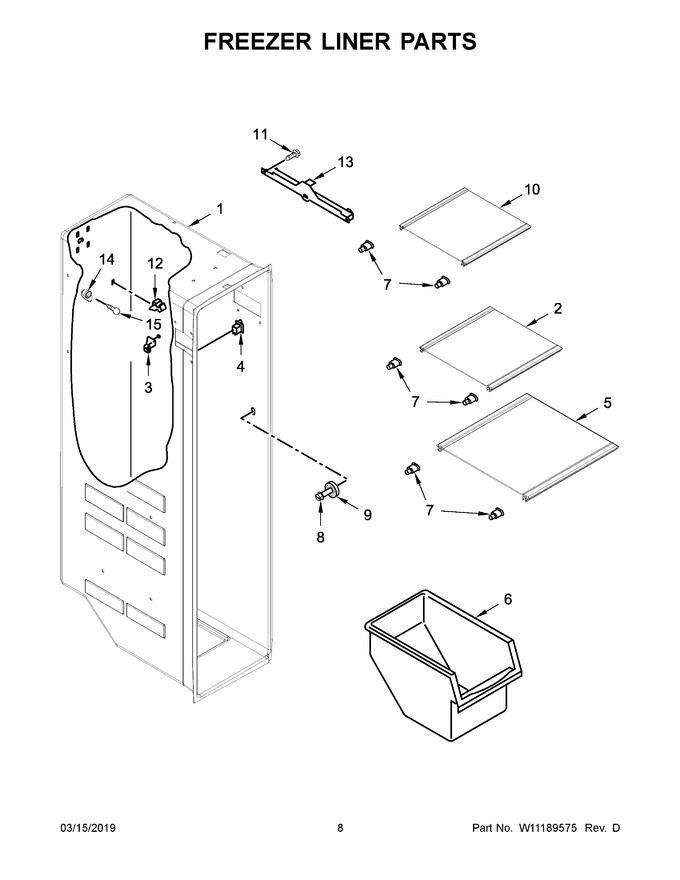

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11194631 | Shelf, Glass (middle) (Replaces: W11048572) |
|
$ 216.51 | |||||
| 3 | 2196206 | Stud, Support |
|
- | |||||
| 4 | W11457217 | Switch, Rocker Arm (freezer) (Replaces: 1115373) |
|
$ 38.18 | |||||
| 5 | W11311689 | Shelf, Glass (bottom) (Replaces: W11252832) |
|
$ 234.16 | |||||
| 6 | WP2309758 | Bin, Freezer (Replaces: 2309758) |
|
Immediately | $ 124.47 | ||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.00 | ||||
| 8 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.05 | |||||
| 9 | W11223328 | Assembly, Stud (Replaces: 2196208) |
|
Immediately | $ 14.07 | ||||
| 10 | W11194634 | Shelf, Glass (top) (Replaces: W11048569) |
|
$ 224.09 | |||||
| 11 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.42 | |||||
| 13 | W10845585 | Slide, Ice Container (left) |
|
$ 132.77 | |||||
| 14 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 13.21 | ||||
| 15 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 43.24 | ||||
| 13A | W10845583 | Slide, Ice Container (right) |
|
$ 123.92 |
