SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

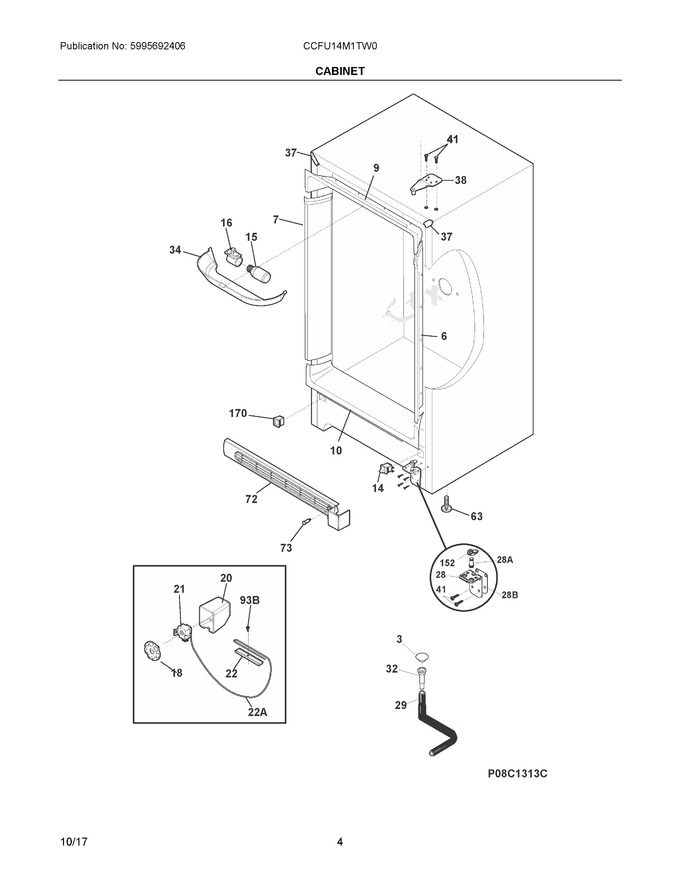

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 19.28
6	297435603		Breaker, U12/u14, No Lock		Appelez-nous	-
7	297435602		Breaker, U12/u14, W/lock		Appelez-nous	-
9	297381501		Breaker, Top				$ 48.91
10	297381502		Breaker, Bottom		Appelez-nous	-
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 81.18
16	297139501		Socket, Light/lamp, 25 W				$ 21.69
18	216707200		Knob, Temp Control				$ 49.00
20	297013800		Cover-control Housing				$ 80.43
21	5304501378		Control-temperature		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, Reversible, Bottom Rh				$ 16.87
29	5304510363		Hose-drain				$ 15.27
32	5304511843		Drain   (Replaces: 297382000)				$ 15.27
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Wire Retainer				$ 24.91
37	297273904		Trim-cabinet Corner, White, (2)				$ 8.43
38	297283803		Hinge-upper			Immediately	$ 21.69
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297387806		Grille, W/signal Light				$ 70.88
73	5304495394		Light Signal, Round, Green			Immediately	$ 31.33
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.94
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 11.25
170	297280400		Valve, Breather				$ 11.25
28A	297438300		Pin, Bottom Hinge				$ 8.03
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 65.73
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	5304511098		Energy Guide		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	5304498525		Service Data Sheet		Appelez-nous	-
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NIA	5304511026		Hinge Bearing, Reversible			Immediately	$ 11.25
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	5304509722		Trim Shelp, Evaporator				$ 31.33
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
