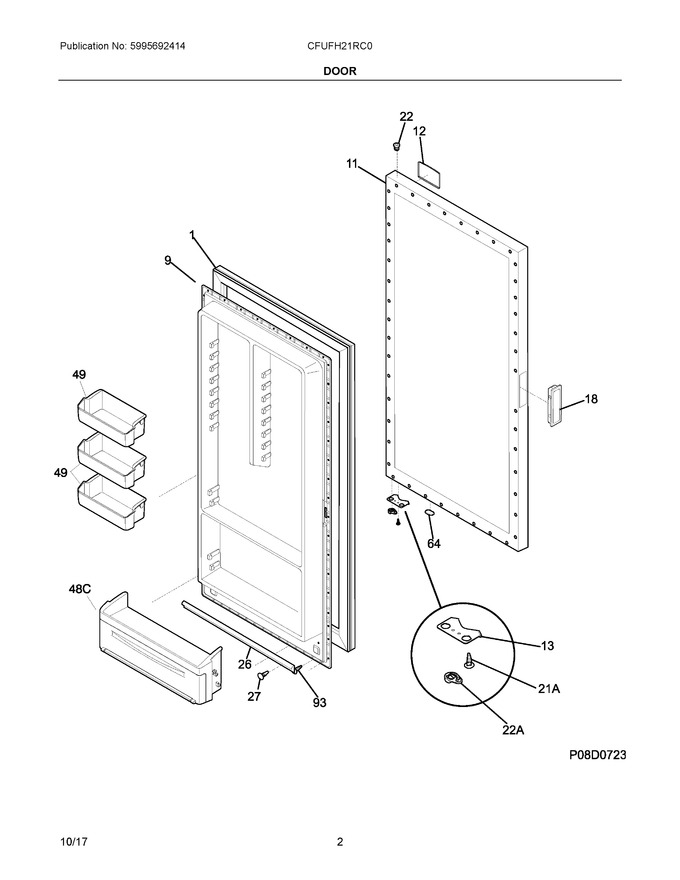

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506133 | Gasket-door, Black (Replaces: 216522379) |
|
$ 258.70 | |||||
| 9 | 297382800 | Panel, Inner |
|
$ 234.20 | |||||
| 11 | 297316752 | Panel-outer Door, Camo |
|
- | |||||
| 12 | 5304502901 | Nameplate |
|
- | |||||
| 13 | 297416200 | Door Stop |
|
$ 17.67 | |||||
| 18 | 297034201 | Handle, Recessed, Black, Includes Gasket |
|
$ 14.12 | |||||
| 22 | 216970802 | Bearing, Hinge, Natural, Top |
|
Immediately | $ 12.05 | ||||
| 26 | 297415900 | Ramp, Door Closer |
|
Immediately | $ 27.49 | ||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 18.48 | |||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 15.75 | ||||
| 49 | A00299203 | Bin-door (Replaces: 5304500224) |
|
$ 89.25 | |||||
| 64 | 297014702 | Plug-button, Door Base |
|
$ 10.45 | |||||
| 93 | 216858001 | Screw, Ph Truss Head, 8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 16.07 | |||||
| 22A | 5304511026 | Closer, Bearing Hinge (Replaces: 297416000) |
|
Immediately | $ 11.25 | ||||
| 48C | 5304510193 | Bin-door (Replaces: 297225600) |
|
$ 81.74 | |||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.94 | ||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 139.81 |
